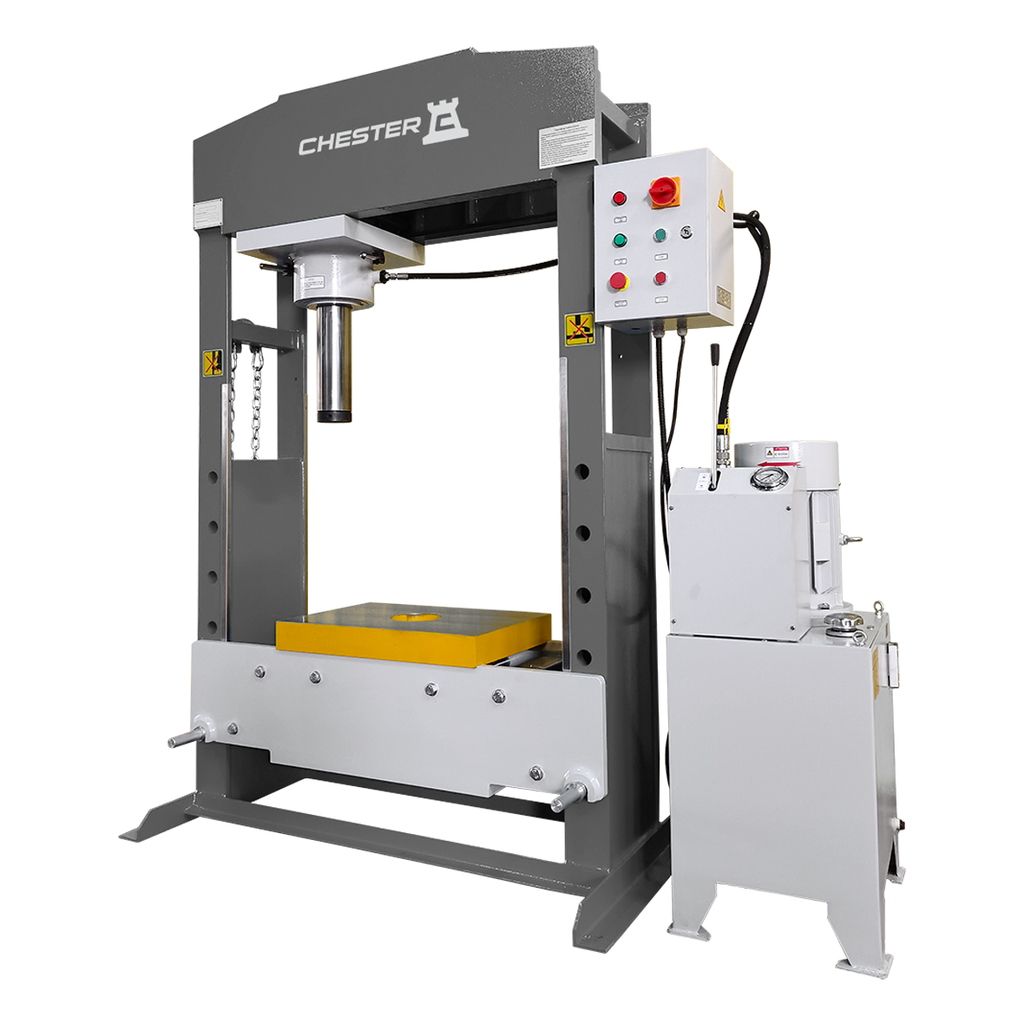

Ideal for heavy duty tasks in your workshop.
Features:
- Robust Steel Frame Construction
- Moveable Hydraulic Cylinder
- User Friendly Maintenance
| Model | WP50H |
| Maximum Force | 51T |
| Hydraulic Pressure | 30Mpa |
| Cylinder Stroke | 250mm |
| Ram Speed (Forward/Return) | 4/5mm/s |
| Worktable Travel (Size/Inner Hole Diameter) | 550x350mm/Φ120mm |
| Worktable Travel (Increments x Distance) | 4 x 150mm |
| Motor Power | 2.2kW (3.0HP) |

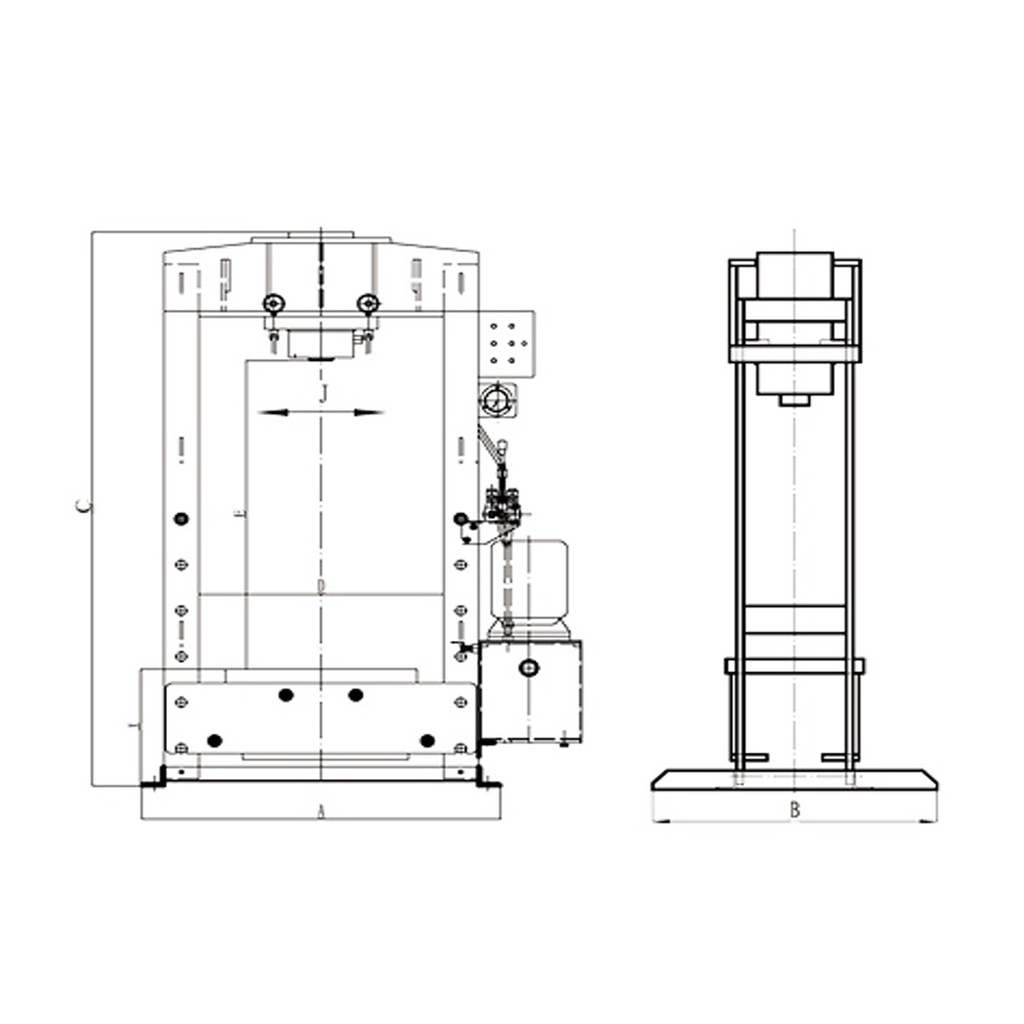

| A | 1026mm |
| B | 700mm |
| C | 1825mm |
| D | 700mm |
| E | 1010mm |
| I | 325mm |
| J | 320mm |
| Weight | 860kg |
Standard Accessories:
- Safety Fence
- V Block
- Dedicated Lifting Sling
