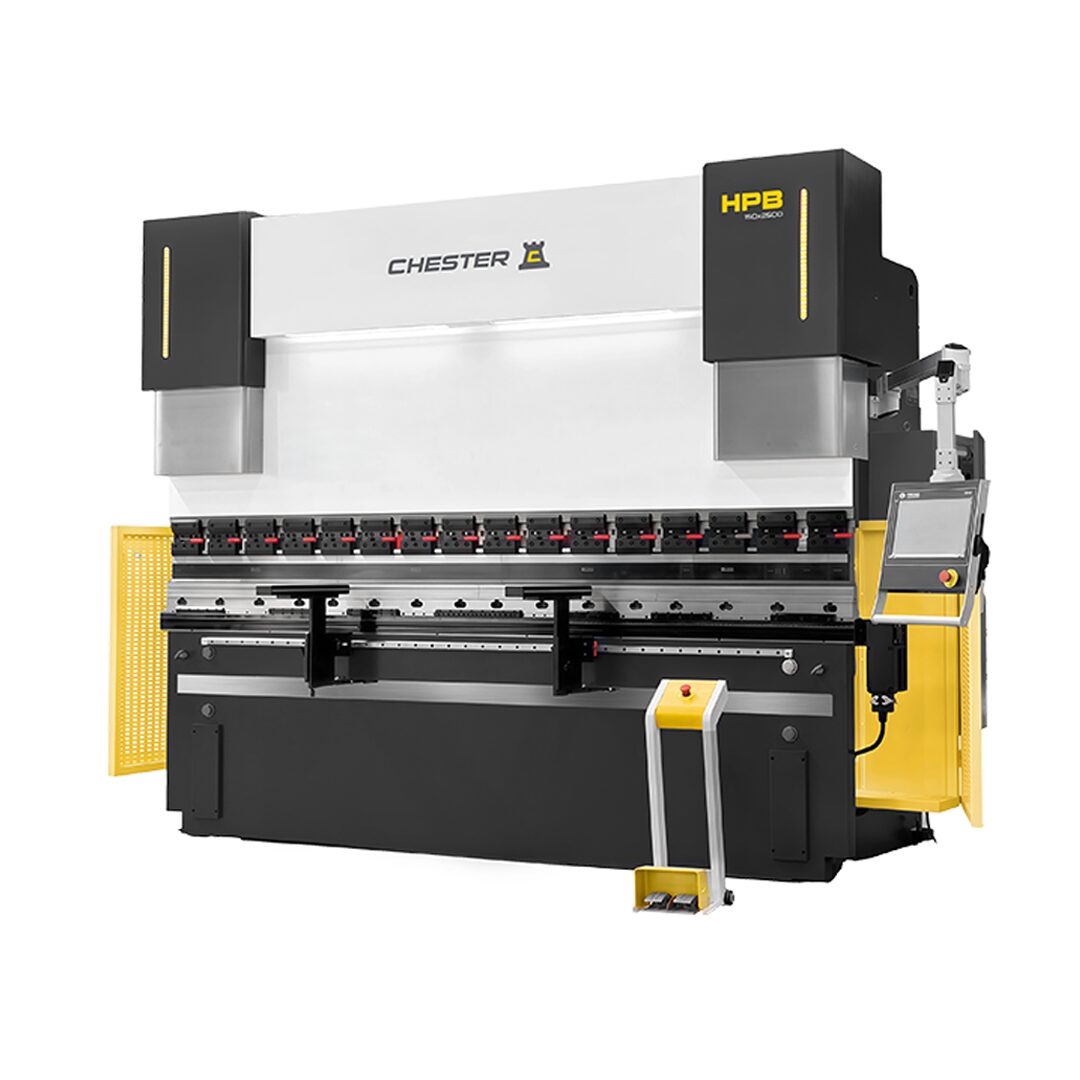

Press Brakes are used to bend sheet metal with high precision. Using a punch and die, it forms material into angles, channels, and a wide range of profiles.
Additional models available.
Bending Force | 160 Ton |
Bending Length | 4100mm |
Distance between Columns | 3600mm |
Throat Depth | 410mm |
Slide Travel | 220mm |
Open Height | 490mm |
Table Height | 95mm |
Table Width | 100mm |
Table to Ground | 895mm |
Tank Volume | 200L |
Approaching Speed | 220mm/sec |
Working Speed | 16mm/sec |
Return Speed | 180mm/sec |
X Axis Stroke | 600mm |
R Axis Stroke | 180mm |
Main Motor Power | 17.8kW (23.85hp) |
Machine Dimensions (L x W x H) | 4910 x 1550 x 2625mm |
Net Weight | 10.5 Ton |
Standard Accessories:
- Delem DA53Tx Controller
- 4 Axis plus Crowning Table for compensation (2.5m and above)
- 4 Axis (Less than 2.5m)
- Laser Protection System
- Back Gauge Servo Motor
- Front Supports
- Foot Switch
- Standard Tooling
- Operation Manual
Optional Accessories:
- Electrical Switch Controlled Double Stop Fingers
- Tool Storage Rack
- Wide Crowning Table
- Wider Crowning Table (3.1m and up)
- Optional Tooling
- Custom Made Accessories
- Machines can be supplied in Tandem
Optional Controllers:
Delem:
- DA58T (4+1/6+1)
- DA66S (4+1/6+1/8+1)
- DA69T/S (6+1/8+1)
ESA:
- S630 (4+1)
- S840R (4+1)
- VIS-875 ( 4+1/6+1/8+1)
Cybelec:
- CT12 (4+1)
- CT15 (4+1/6+1)
- VP88 (8+1)
