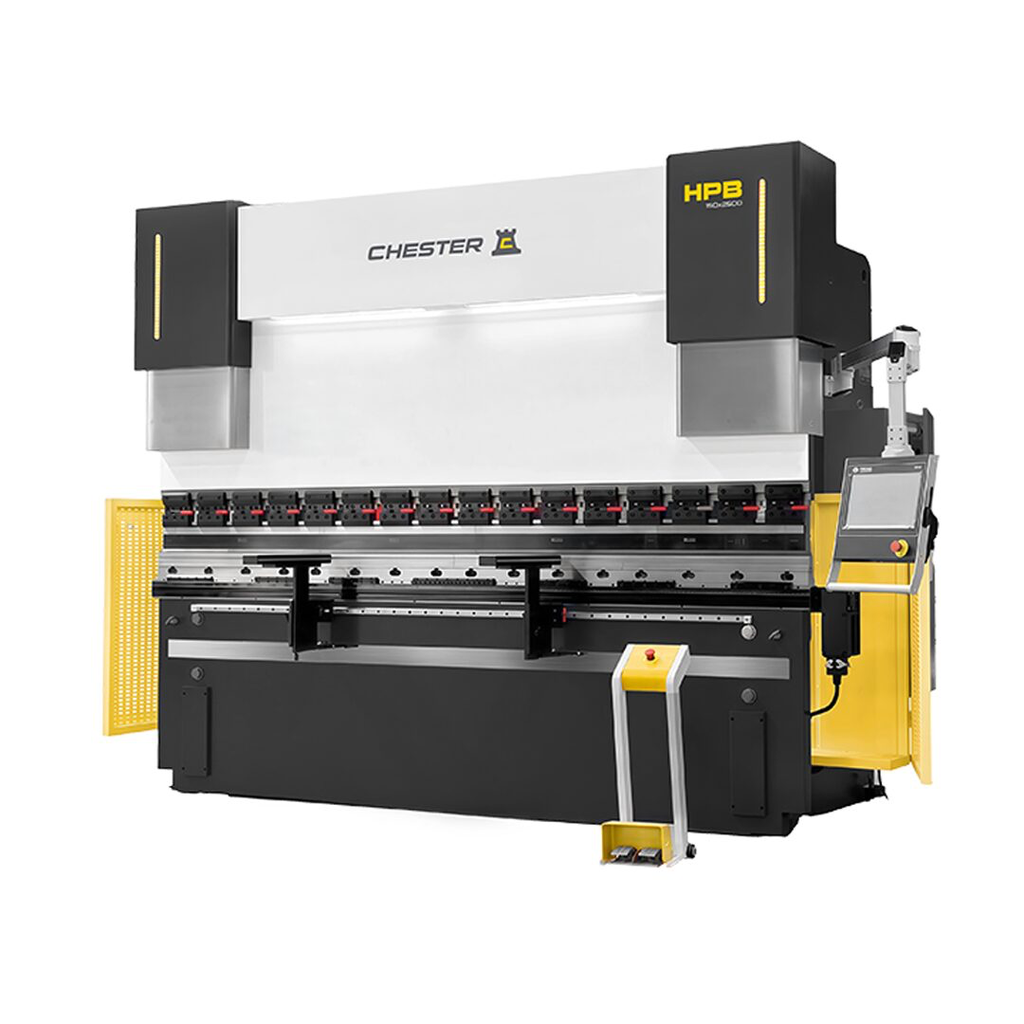

Press Brakes are used to bend sheet metal with high precision. Using a punch and die, it forms material into angles, channels, and a wide range of profiles. It provides accurate, repeatable bending performance for both simple and complex parts.
Bending Force | 4800kN |
Bending Length | 4000mm |
Oil Tank | 1800L |
Approaching Speed | 80mm/s |
Ram Speed | 8mm/s |
Return Speed | 90mm/s |
X-Axis Stroke | 980mm |
X-Axis Speed | 220mm/s |
R-Axis Stroke | 200mm |
R-Axis Speed | 40mm/s |
Column Distance | 2800mm |
Throat Depth | 600mm |
Stroke | 320mm |
Daylight | 800mm |
Step/Servo Motor | 2 x 26.9/31.2kW |
Machine Dimensions (L x W x H) | 4250 x 3500 x 4100mm |
Net Weight | 57 T |
Standard Accessories:
- Delem DA53Tx Controller
- Top Punch
- Bottom Die
- 4 +1 Axis (50T-300T)
- 3+1 Axis (400T-1200T)
- Quick Clamp (50T-250T)
- Heavy-Duty Clamp (300T-1200T)
- Mechanical Deflection Compensation (except 50T1300-1600)
- Magnetic Linear Scale (GIVI, Italy)
- Light Curtain for Front and Rear Protection
- Back Gauge with Servo Motor
- Back Gauge Driven by Ballscrew with Hardened Linear Guideways (50T–300T)
- Back Gauge Driven by Ballscrew with Hardened Linear Guide Shafts (400T–1200T)
- Front Supports
- Foot Switch
- LED Lighting
- Operation Manual
Optional Controllers:
Delem:
- DA58TX (4+1)
- DA66S (4+1/6+1)
- DA69S (6+1/8+1)
ESA:
- S840R (4+1/6+1)
- S875 ( 4+1/6+1/8+1)
Cybelec:
Other Optional Accessories:
- S875 Dual Screen
- 5-Point DSP Laser Protection
- 9-Point DSP Laser Protection
- 5-Point Monitoring Valve
- Laser Bending Alignment Instrument
- Tools Storage Rack
- Optional Tooling
- Delem CAD/CAM Profile-3D Offline Software
- Machines can be supplied in Tandem
