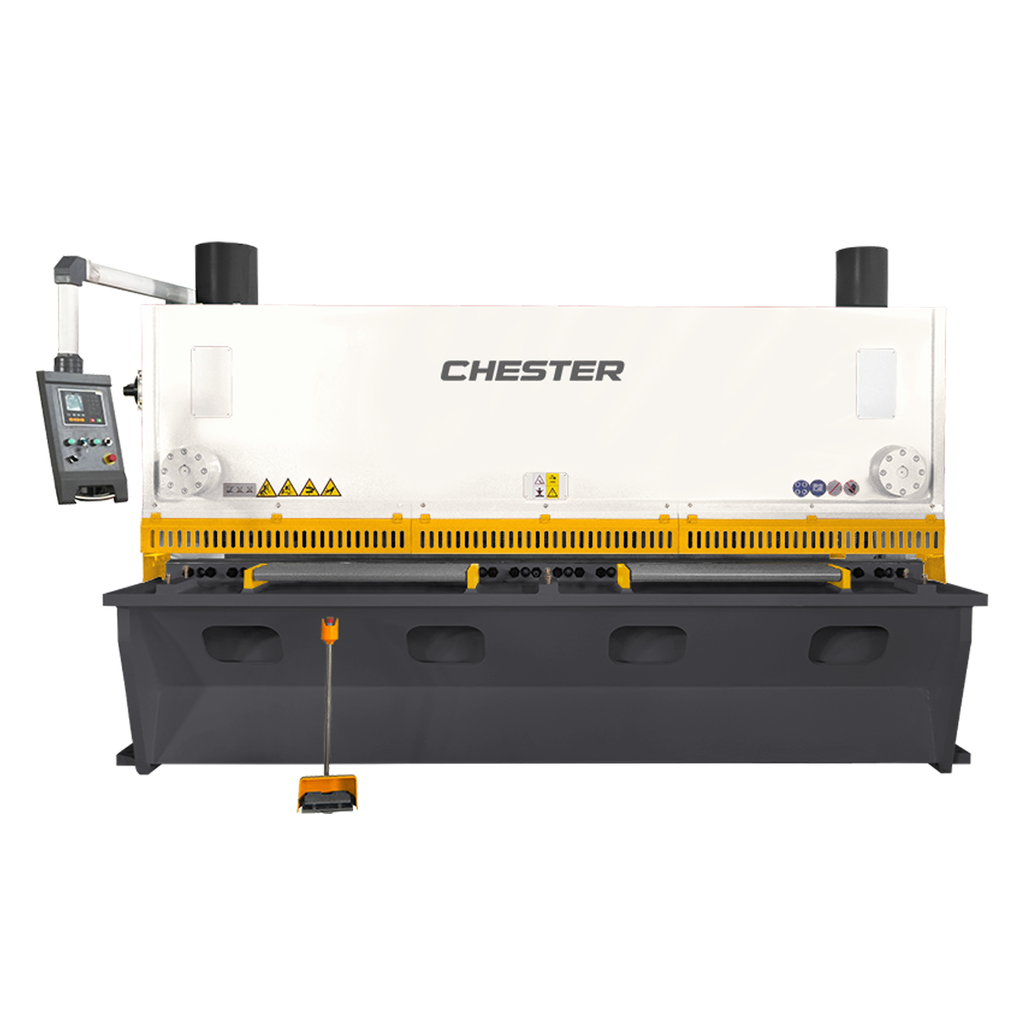

Guillotine shears cut sheet metal using a straight, vertical blade movement. This provides high cutting accuracy and accommodates thicker materials and longer cut lengths. Its robust structure makes it suitable for heavy-duty applications requiring consistent precision.
Max. Cutting Thickness | 6mm |
Max. Cutting Width | 3200mm |
Hydraulic Oil Tank Capacity | 300L |
Stroke Rate | 14-20 strokes/min |
Backgauge Rate | 20-800 mm |
Cutting Angle | 30-1°30 |
Main Motor Power | 7.5kW |
Hydraulic Pump Displacement | 20 ml/r |
Machine Weight | 6.6T |
Overall Dimensions (L x W x H) | 3900 x 1950 x 2075mm |
Standard Accessories:
- Estun E21S CNC Controller on Pendant
- Manual Blade Gap Adjustment
- Back Gauge Driven by Ballscrew with Hardened Linear Guide Shafts
- Front Safety Guardrail
- Light Curtain for Rear Protection
- Front Support
- Standard Set of Blades
- Foot Switch
- LED Lighting
- Operation Manual
Optional Controllers:
- ESTUN 200PS with Electrical Blade Gap Adjustment
- ELGO P40T with Electrical Blade Gap and Angle Adjustment
- Delem DAC360T with Electrical Blade Gap and Angle Adjustment
Optional Accessories:
- Linear Guideways for Back Gauge (only for ESTUN 200PS and ELGO P40T)
- Pneumatic Rear Sheet Support (max 8 mm Plate Thickness)
- Extended Back Gauge to 1000mm
- Air-Cooled (Fan) Cooling System
- Stainless Steel Blades
