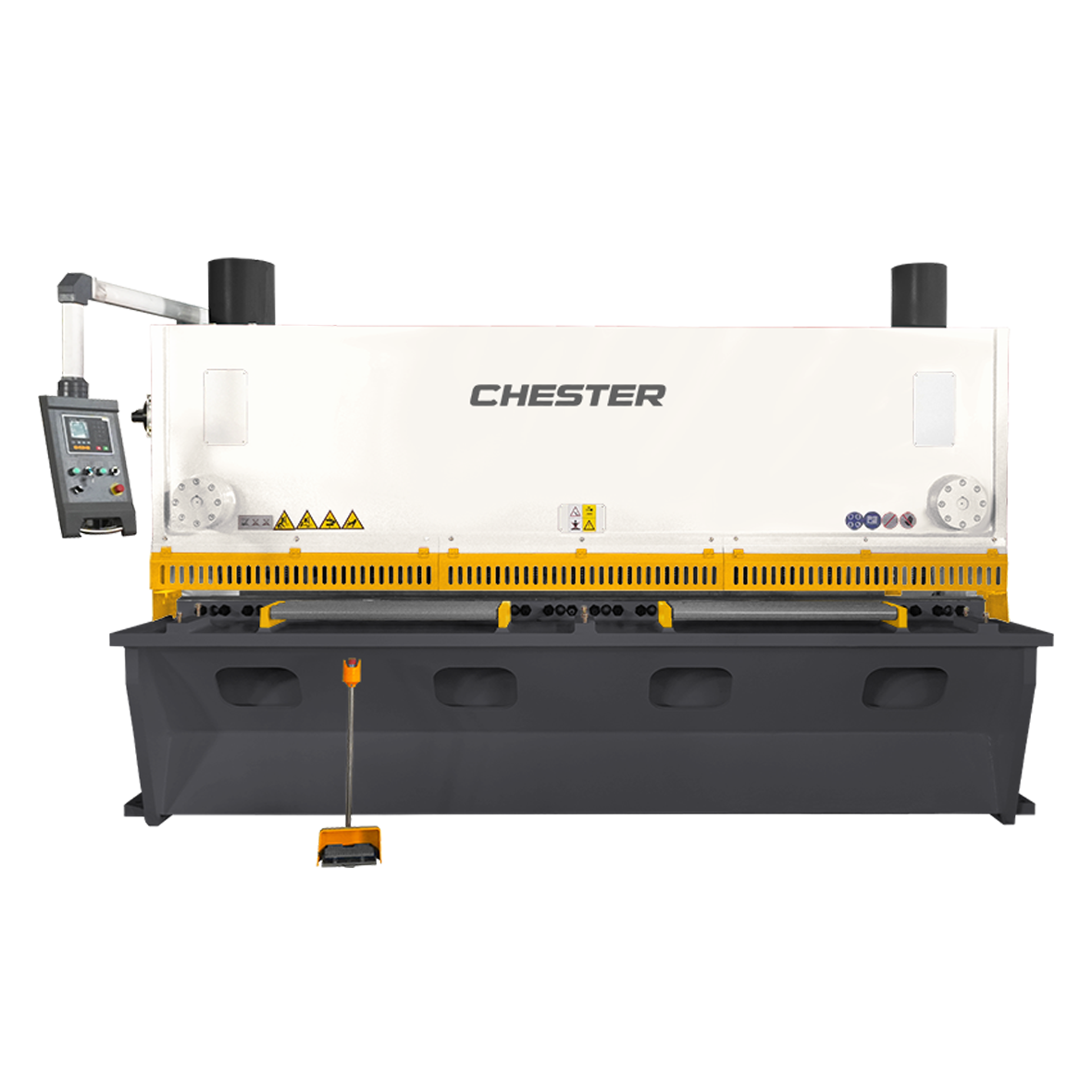

Guillotine shears cut sheet metal using a straight, vertical blade movement. This provides high cutting accuracy and accommodates thicker materials and longer cut lengths. Its robust structure makes it suitable for heavy-duty applications requiring consistent precision.
Max. Cutting Thickness | 25mm |
Max. Cutting Width | 4000mm |
Hydraulic Oil Tank Capacity | 1200L |
Stroke Rate | 5-8 strokes/min |
Backgauge Rate | 20-800 mm |
Cutting Angle | 30-3°3 |
Main Motor Power | 45kW |
Hydraulic Pump Displacement | 100 ml/r |
Machine Weight | 26T |
Overall Dimensions (L x W x H) | 4900 x 2800 x 3190mm |
Standard Accessories:
- Estun E21S CNC Controller on Pendant
- Manual Blade Gap Adjustment
- Back Gauge Driven by Ballscrew with Hardened Linear Guide Shafts
- Front Safety Guardrail
- Light Curtain for Rear Protection
- Front Support
- Standard Set of Blades
- Foot Switch
- LED Lighting
- Operation Manual
Optional Controllers:
- ESTUN 200PS with Electrical Blade Gap Adjustment
- ELGO P40T with Electrical Blade Gap and Angle Adjustment
- Delem DAC360T with Electrical Blade Gap and Angle Adjustment
Optional Accessories:
- Linear Guideways for Back Gauge (only for ESTUN 200PS and ELGO P40T)
- Pneumatic Rear Sheet Support (max 8 mm Plate Thickness)
- Extended Back Gauge to 1000mm
- Air-Cooled (Fan) Cooling System
- Stainless Steel Blades
