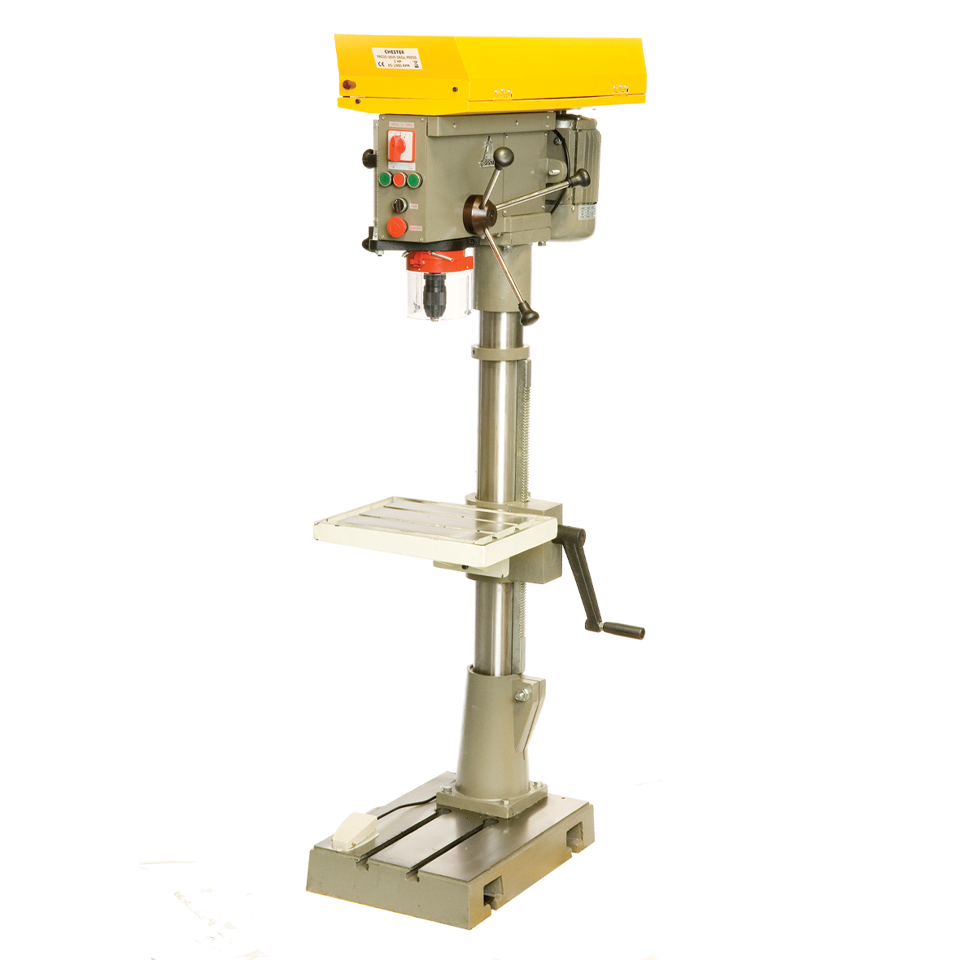

Ex Display Chester PRO25-18VS Variable Speed Drill
Please contact our Sales Team for pricing: [email protected]. Or Call us Today: 01543 448940
Drilling Capacity (Steel): 25mm
Stock Clearance
Ex display Pro25-18VS drill. £1105 exc vat and delivery.
| Model | PRO25 – 18VS |
| Drilling Capacity (Mild Steel) | 25mm |
| Drilling Capacity (Cast Iron) | 25mm |
| Tapping Capacity (Mild Steel) | MT3 |
| Tapping Capacity (Cast Iron) | MT3 |
| Spindle Taper | MT3 |
| Distance from Spindle to Column | 230mm |
| Distance from Spindle to Table(min/max) | 160-670mm |
| Distance from Spindle to Base(min/max) | 1160mm |
| Rotation of Table along with column | 360° |
| Tilting Angle of Table | 45°-45° |
| Vertical Travel of Table | 510mm |
| Table Size | 405x320mm |
| Number and size of T slots on Table | 2-14X335mm |
| Distance between T Slots | 98 |
| Maximum Spindle Traverse(hand/power) | 120mm |
| Number of Spindle Speeds | step less |
| Range of Spindle Speeds | 85-1900rpm |
| Number of Feed Rates | 3 |
| Power Feed Rates | 50hz |
| Base Size Overall | 550x370mm |
| Base Working Surface | 370X345mm |
| Number and Size of T Slots on Base | 2/16X320mm |
| Distance between T Slots | 120mm |
| Column Diameter | 100mm |
| Main Motor Power | 1.5kw(2hp) |
| Overall Height | 1800mm |
| Net Weight | 274kg |
| Case Dimensions | 570x395x1800mm |
**Please contact us for shipping / delivery price details**
Comes with 3-months parts-only warranty
