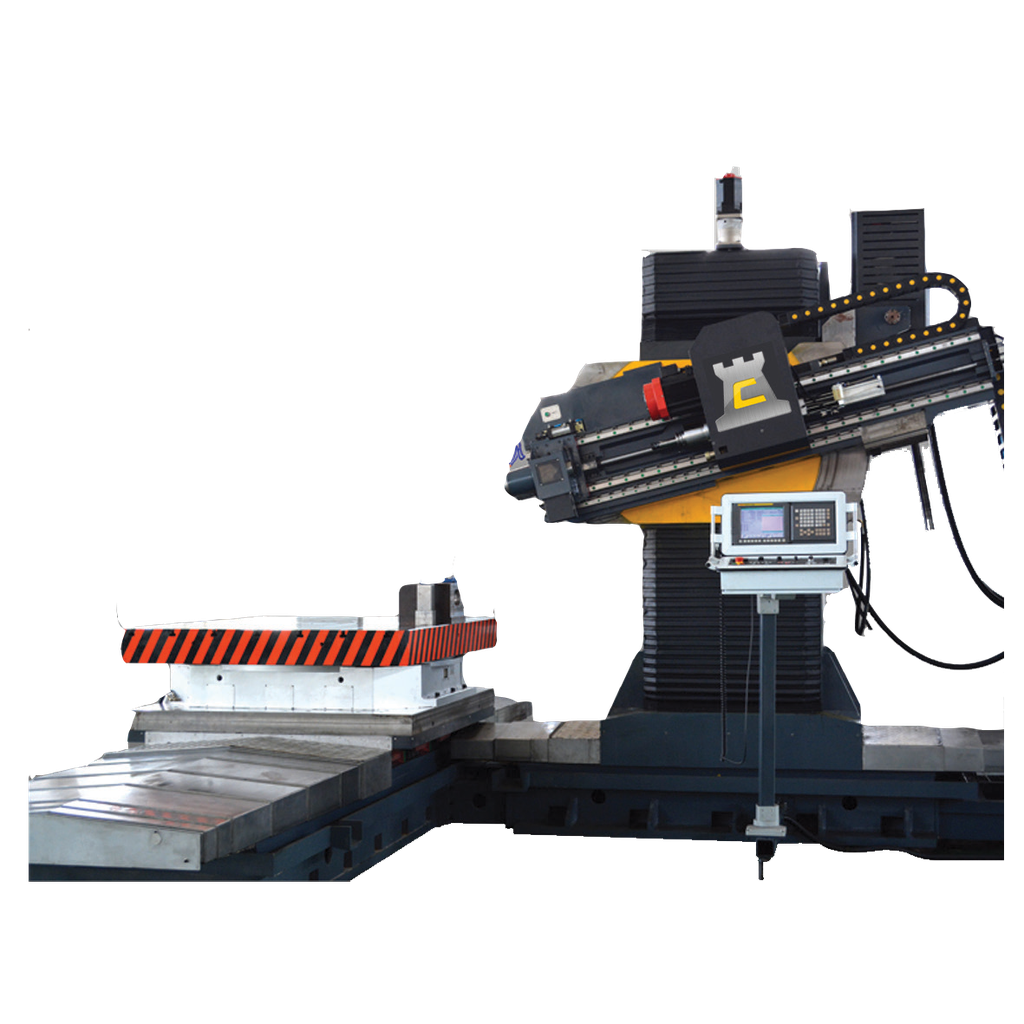

CHESTER DHS SERIES 6 AXIS CNC DEEP HOLE DRILLING MACHINE, DHS2013D
Please contact our Sales Team for pricing: [email protected]. Or Call us Today: 01543 448940
CNC Deephole Drilling Machines
Precision deep hole drilling machines with 10m/min fast feed and 200°/min max. speed of ram.
| Model | DHS2013D |
| Processing Capacity |
|
| Diameter of the Hole for Gun Drill | Ø4-Ø35mm |
| Diameter of the Hole for Ejector | Ø18-Ø65mm |
| Maximum Depth of the Hole for Gun Drill | 1300+700mm |
| Maximum Depth of the Hole for Ejector | 1000mm |
| Processing Range |
|
| Processing Range from Left to Right of X axis | 2000mm |
| Processing Range of Sliding Table of Y axis | 1500mm |
| Processing Range of Column | 1000mm |
| Rotary Angle of Ram | 20deg upward/30deg downward |
| Spindle |
|
| Taper Hole Spindle | BT50(mill)/BT50(drill) |
| Maximum Speed of Spindle | 6000r/min(mill)/ 6000r/min(drill) |
| Efficiency |
|
| Fast Feed(X.Y.W.Z) | 10m/min |
| Maximum Speed of Working Table | 2r/min |
| Maximum Speed of Ram | 200°/min |
| Power |
|
| Spindle Motor | Mill:15kw(20.12hp)/Drill:11kw(14.75hp) |
| X Axis Servo Motor | 30N.m |
| Y Axis Servo Motor | 40N.m |
| W Axis Servo Motor | 22N.m |
| Z Axis Servo Motor | 30N.m |
| A Axis Servo Motor | 22N.m |
| B Axis Servo Motor | 30N.m |
| Total Power | 78KVA |
| Cooling System |
|
| Pressure | 2-11/1-1.7Mpa |
| Flow Rate | 6-80/40-165L/min |
| CNC Index Table |
|
| Max.Loading Capacity | 10ton |
| Dimensions | 1400x1400mm |
| Measurement&Weight |
|
| Dimensions | 6000x6500x4750mm |
| Net Weight | 32ton |
