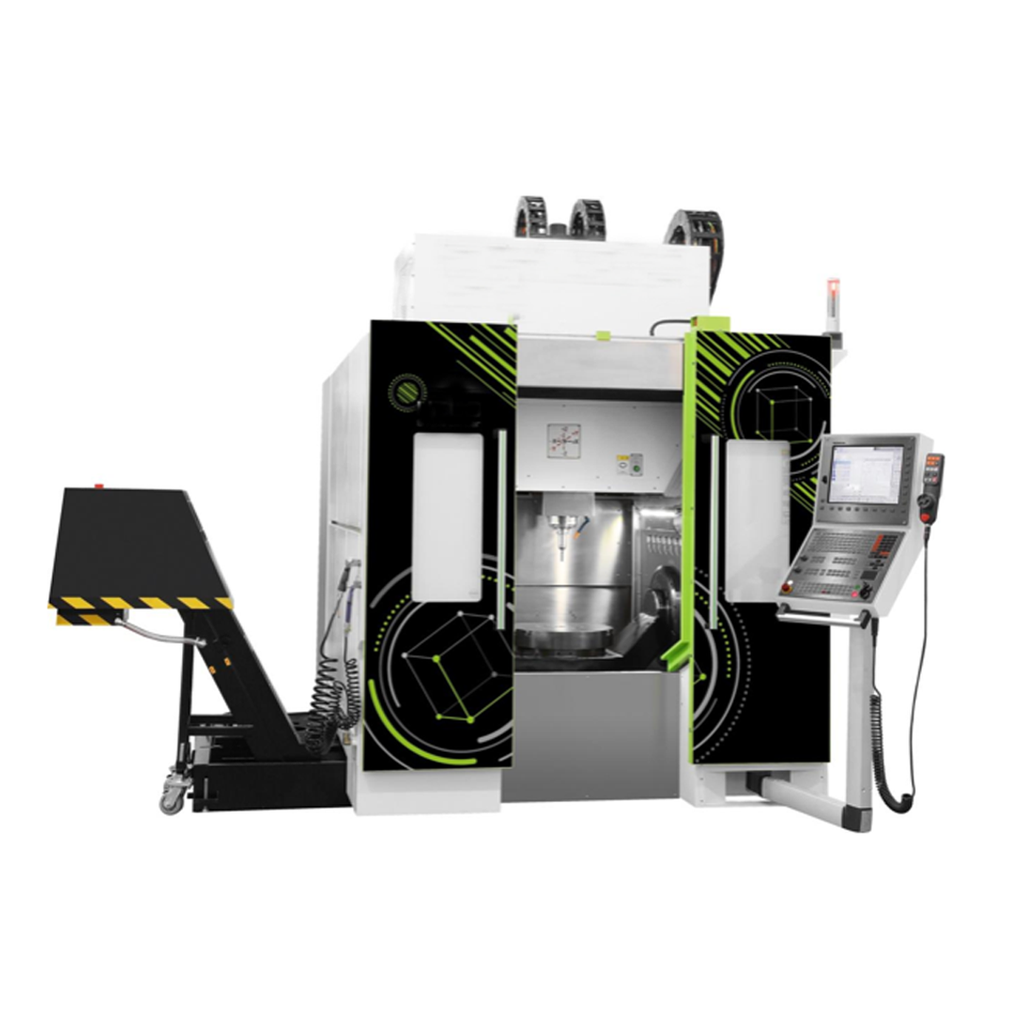

CHESTER U500-5AX 5 AXIS CNC MILLING MACHINE
Please contact our Sales Team for pricing: [email protected]. Or Call us Today: 01543 448940
Table Size: 500mm
Spindle Taper: HSK A63 / HSK E50
CNC Machining Centres

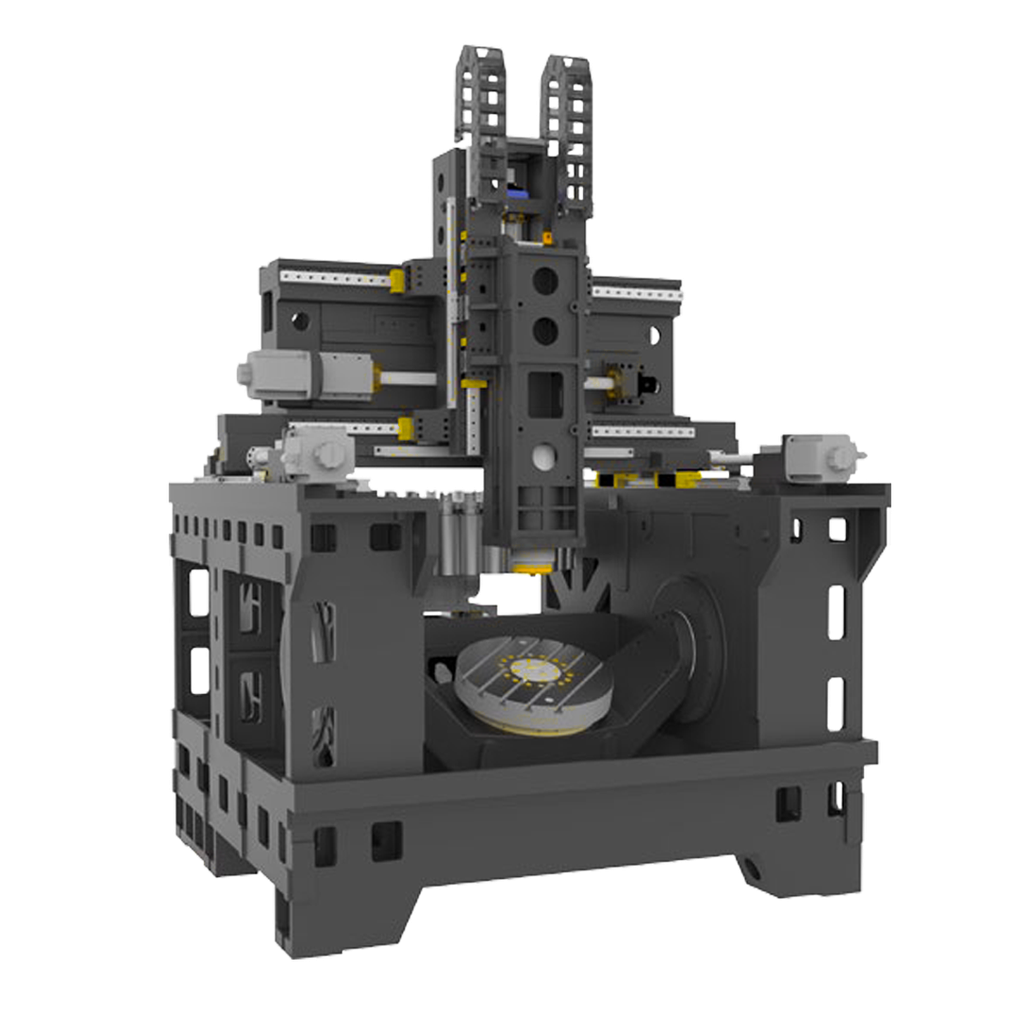

Powerful High Speed Precision Machining with gantry design and dual drive system.
High precision 5 Axis mill with chain type chip conveyor and automatic lubrication system.
- Gantry Design
- Torque motor direct drive rotary table
- Dual drive system with two ballscrews on Y axis to ensure best dynamic
- Compact design with minimum floor plan area
| Technical Specifications | U500-5AX |
| Max. workpiece diameter | ∅700mm |
| Table Size | ∅500mm |
| T-slot (width x number x distance) | 14 x 5 x 80mm |
| Max. load | 500kg |
| X/Y/Z Travel | 700 / 650 / 450mm |
| A/C Travel | +30° ~ -110° / 360° |
| Spindle |
|
| Spindle taper | HSK A63 HSK A63 HSK E50 |
| Spindle motor power | 21/26 kW 20/24 kW 15/18 kW |
| Spindle motor torque | 67/86 Nm 48/58 Nm 14/17.3 Nm |
| Spindle speed | 18000 rpm 20000 rpm 36000 rpm |
| Spindle nose to table | 135-585mm 110-560mm 110-560mm |
| Rapid feed X/Y/Z | 36 m/min |
| Rotation speed A/C | 100 / 170 rpm |
| Cutting speed | 1-12000 mm/min |
| Number of tools | 32 |
| Max. tool length | 250mm |
| Max. diameter | 63mm |
| Max. tool weight | 4kg |
| Accuracy |
|
| Positioning accuracy | 0.006mm(X/Y/Z); 5/3 arc-sec(A/C) |
| Positioning repeatability | 0.003mm(X/Y/Z); 2.5/2 arc-sec(A/C) |
| Dimensions & Weight |
|
| Dimensions | 3560 × 3380 × 2995mm |
| Weight | 9000kg |
Standard Accessories
• Full enclosed splash guard
• Chain type chip conveyor
• Air-conditioned electric cabinet
• High precision spindle water cooler
• Linear scales on X/Y/Z axis
• Rotary encoder on A/C axis
• Rigid tapping
• Ethernet, CF card and USB interface
• Centralised automatic lubrication system
• Coolant system
• Air blast during cutting
• LED Working lamp
• End of program light
• Electronic Handwheel (MPG)
• Tool box
• Leveling bolts and blocks
• Chip flushing system
• Coolant gun
• Air gun
• Manual
Optional Accessories
• Built-in spindle HSK A63 18000rpm
• Built-in spindle HSK E50 36000rpm
• CTS Coolant through spindle + ATS
• Oil cooling through ballscrew
• Workpiece probe
• Tool probe
• Dynamic Collision Monitoring (DCM)
• Kinematics
