The complete fusion of milling and turning enables you to finish your parts from raw material to completed components done in one hit.
The new model now has a BMT lower turret which offers a further 12 more driven tools. At the cutting edge of technology the TM500C is environmentally efficient and excellent value.

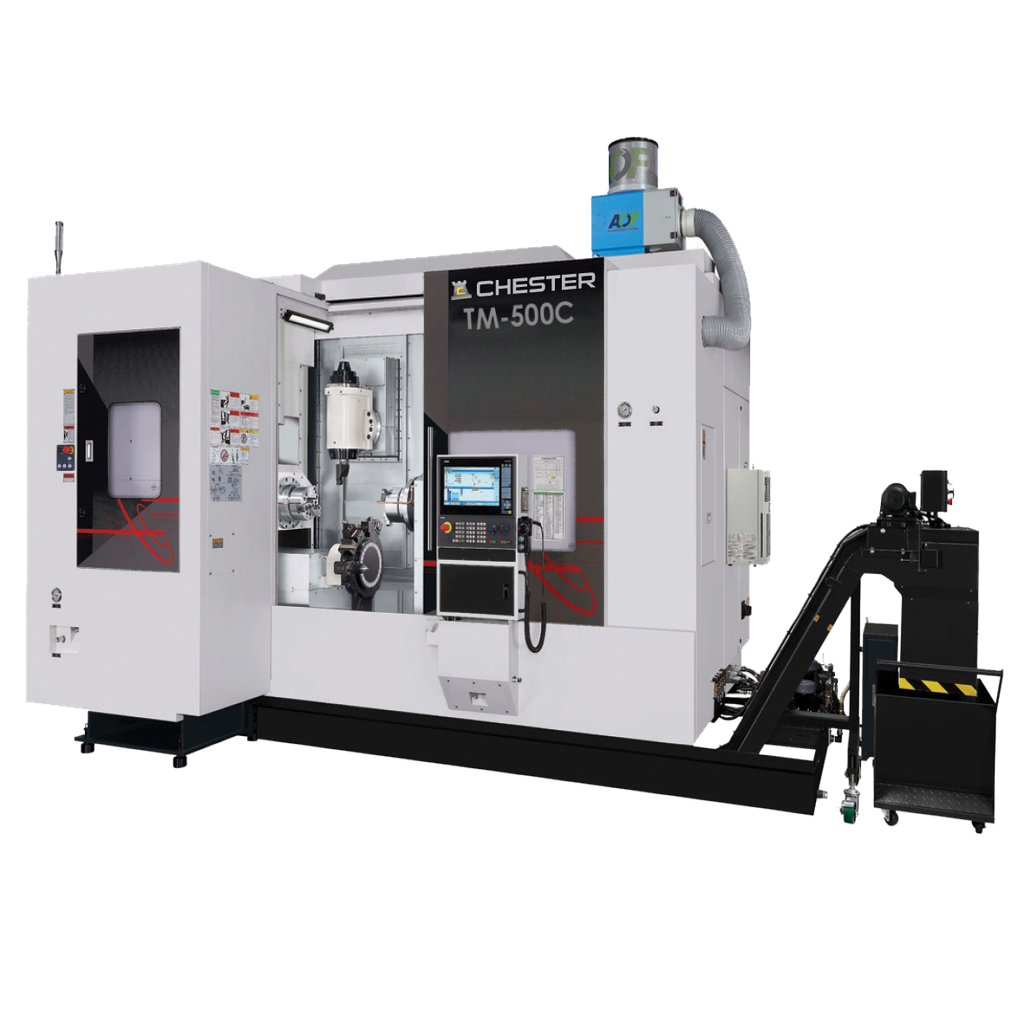

A cutting edge CNC Machine, the TM500C combines milling and turning for the complete package in one machine.
| Technical Specifications | TM500C |
| Max. Swing Dia. (Milling Spindle/Turret) | ø530mm/ø450mm |
| Max.Machining Dia.(Milling Spindle/Turret) | ø450mm/ø250mm |
| Max.Machining Length. | 1040mm |
| Turning Spindle Bore Hole Size | ø52mm |
| X Travel | 560mm |
| Y Travel | ±125mm |
| Z Travel | 1080+72mm |
| X2 Travel | 165mm |
| Z2 Travel | 1040mm |
| W Axis Travel | 1080mm |
| B Axis Angle | ‘-20°-200° |
| C Axis Angle | 360° |
| X Rapid Speed | 36m/min |
| Y Rapid Speed | 36m/min |
| Z Rapid Speed | 36m/min |
| X2 Rapid Speed | 20m/min |
| Z2 Rapid Speed | 30m/min |
| W Rapid Speed | 30m/min |
| B Axis Max. rpm | 25rpm |
| C Axis Max. rpm | 250rpm |
| S1 Chuck Size | 8” |
| S1 Chuck Nose Tyoe | A2-6 |
| S1 Spindle Bore Hole | ø61mm |
| S1 max. Speed | 4500rpm |
| S1 Output | 11/15kw |
| S2 Chuck Size | 8” |
| S2 Chuck Nose Type | A2-6 |
| S2 Spindle Bore Hole | ø61mm |
| S2 Max. Speed | 4500rpm |
| S2 Output | 11/15kw |
| Milling Spindle |
|
| Max. Speed | 12000rpm |
| Spindle Output | ‘11/22kw |
| B Axis Min. Index | 0.001° |
| ATC |
|
| Tool Format | HSK-63T |
| Tool no. | 36pc |
| Max. Tool Dia. ( without Neighbor Tool ) | 90mm(120mm) |
| Max. Tool Length | 250mm |
| Max. Tool Weight | 8kg |
| Turret |
|
| Turret No. | 12pc |
| Tool Holder Format | BMT45 |
| OD Tool Size | 20mm |
| ID Tool Size | 32mm |
| Live Tool Rotation Speed | 5000rpm |
| Motor Output | 2.8kw |
| Control |
|
| Control Type | SIEMENS840D |
| Machine Size |
|
| Machine Height | 2960mm |
| Floor Plan | 4085x2916mm |
| Machine Weight | 15000kg |
| Energy Requirement |
|
| Power Requirement | 42kva |
| Air Pressure Requirement | 6kg/cm³ |
STANDARD ACCESSORIES
• Siemens 840D
• S1 Turning Spindle
• S2 Turning Spindle
• Sub-turret
• B Axis Circular Scale
OPTIONAL ACCESSORIES
• Air Conditioner for Electrical Cabinet
• Anti-Collision Function (for 840D Only)
• Auto Front Door
• Automatic Voltage Stabilizer
• Band (Paper) Filter System (for CTS Supply Unit Only)
• Bar Feeder Interface Preparation
• Bar Feeder(Fedek DH65L)
• Chip Conveyor
• CTS Supply Unit (18 Bars)
• CTS Supply Unit (42 Bars)
• CTS Supply Unit (70 Bars)
• Disc Oil Coolant Separator
• Eco-CTS Supply Unit (30 Bars)
• Encoder B Axis
• Linear Scale On X/Y/Z Axes
• Oil Demister
• Portable MPG
• Tool Length Measurement System (Laser,Blum Nt-H 3D)
• Tool Length Measurement System (Laser,Renishaw Nc4 + Tool Presetter)
• Tool No.:72 Tools (Hsk-T63)
• Transformer: 220V/50/60Hz
• Wash Down System
• With New Ce Unit (Double Safety Loop)
• Full Center Calibrating Device (Kinematics Software +Hardware) (By Renishaw Rmp600 Only)
• Workpiece Measurement System (Blum, TC63)
• Workpiece Measurement System (Renishaw, Rmp60)
