Precision 5 Axis CNC system with 3D Tool Path simulation and RTCP function for workpieces.
- Support 5 Axis linkage interpolation
- Support RTCP function and 3+2 function
- Support absolute valve encoder function (without installing origin switch)
- Support encoder feedback and grating ruler feedback
- Compensation for pitch error
- Add dual speed forward button
- Support stl 3D graphic processing preview
- Support the function of cutting off, power-off, and continuous connection as well as skip segment processing
- Directly compatible with processing programs from SIEMENS, HEIDENHAIN, FANUC, SYNTEC, GSK and HNC system
| Model | Techmaster 5AX |

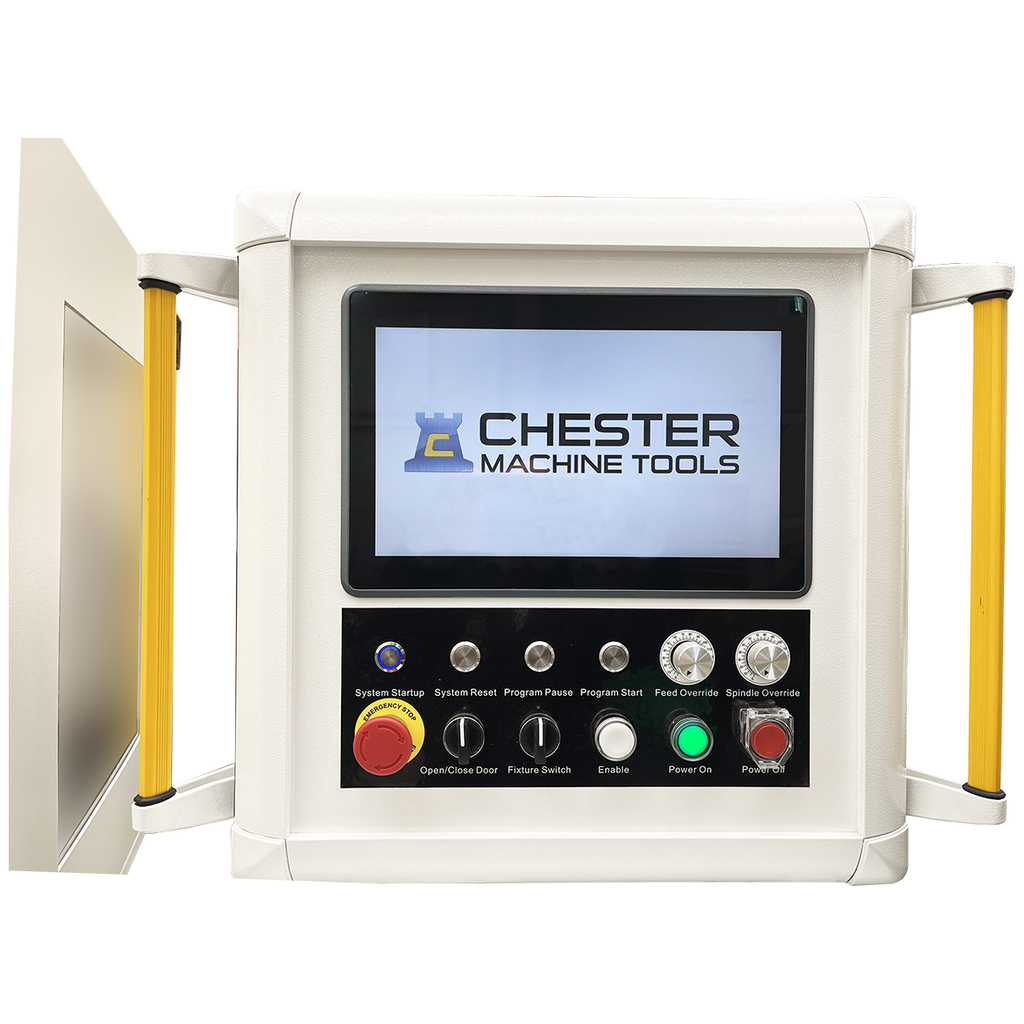

| Control System | Chester 5AX |
| Rotary Table Size | 160mm |
| Worktable Load | 10kg |
| X Axis Travel | 240mm |
| Y Axis Travel | 220mm |
| Z Axis Travel | 280mm |
| A Swing Angle | 30°~ +110° |
| C Swing Angle | 360° |
| Rapid Speed |
|
| X/Y/Z Straight Fast Feed | 5000mm/min |
| A Swing Speed | 20rpm |
| C Swing Speed | 20rpm |
| Spindle |
|
| Spindle Taper | ER11 |
| Spindle Speed | 24000r/min |
| Spindle Power | 0.8Kw |
| Accuracy |
|
| X/Y/Z Positioning Accuracy | ≤0.015mm |
| A/C Positioning Accuracy | ≤30arcsec |
| X/Y/Z Repeatability Accuracy | ≤0.015mm |
| A/C Repeatability Accuracy | ≤20arcsec |
| Others |
|
| Voltage | Single Phase 220v |
| Total Power | 3.6Kw |
| Machine Dimensions | 1600 x 960 x 2000mm |
| Weight | 400kg |
Standard Accessories
- Chester 5AX Control System
- Electronic Hand Wheel (MPG)
- Rotary Table
- Collet Set
- Wrench Set
- Manual
