Precision 2 Axis Turning Centre with Servo Tailstock and 16/18mm Rapid Travel Speed.
The Hawk TC-375L is the ideal precision
CNC Machine. With hydraulic turret and heat exchanger.
| Model | HAWK TC-375L |
| Processing Range |
|
| Max. Swing Over Bed | Ф650mm |
| Max. Swing Over Saddle | Ф450mm |
| Max Turning Diameter | Φ630mm |
| Max. Turning Length | 1500mm |
| Max. Bar Capacity | Φ116mm |
| Spindle |
|
| Max. Spindle Speed | 2000rpm |
| Spindle Nose | A2-8 |
| Spindle Bore | Φ132mm |
| Spindle Taper | Metric 100 |
| Height from Spindle Centre to Ground | 1100mm |
| Hydraulic Tailstock |
|
| Tailstock Quill Diameter | Servo Tailstock |
| Tailstock Quill Travel | Servo Tailstock |
| Quill Center | Morse 5# (Die center) |
| Axis X/Z |
|
| Travel X/Z | 350/1600mm |
| Rapid Travel Speed X/Z | 16/18mm |
| X axis ball screw dia/pitch | Φ40/10mm |
| Z axis ball screw dia/pitch | Φ40/10mm |

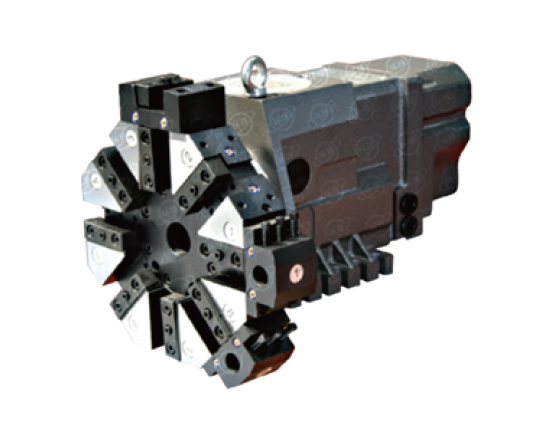

| Hydraulic Turret |
|
| Tool Position | 8 |
| Turning Tool Size | 32 x 25mm |
| Boring Holder Diameter | Ф50mm |
| Machining Accuracy |
|
| Positioning Accuracy X/Z | 0.01/0.014mm |
| Repeatability X/Z | 0.005/0.008mm |
| Other |
|
| Power Capacity | 35Kva |
| Spindle Motor Power | 22/26kw |
| Machine Dimension (LxWxH) | 5770 × 2060 × 2170mm |
| Net Weight | 8000kg |
Standard Accessories
- Siemens 828D
- Shopturn
- MPG
- 2000rpm belt drive spindle (Siemens 828D)
- 8 position hydraulic turret
- 15″ hollow chuck and cylinder + 22/26kw motor +116mm bar capacity
- Hollow hydraulic cylinder
- Hydraulic Tailstock
- Hydraulic System
- Heat Exchanger
- Auto chip conveyer & chip cart
- Auto oil lubrication system
- Tri-color light
- Air gun
- Door lock switch
- Lighting Lamp
- Full enclosure splash guard
- Telescopic covers
Optional Accessories
- FANUC 0i TF(5) CNC system
- Auto parts catcher
- Bar feeder interface
- M30 Auto power off
- Hydraulic tailstock (only quill)
- Full hydraulic tailstock
- Bar feeder DH65
- Renishaw tools measure HPMA
- Air conditioner for cabinet
