3 Axis Turning Centre CNC Machine with 5000rpm max. Live Tool Speed and 12 position BMT55 living turret.
Featuring Belt Drive Spindle and Hydraulic System
| Model | HAWK TC-375M-B |
| Processing Range |
|
| Max. Swing Over Bed | Ф650mm |
| Max. Swing Over Saddle | Ф410mm |
| Max Turning Diameter | Φ540mm |
| Max. Turning Length | 1000mm |
| Max. Bar Capacity | Φ116mm |
| Spindle |
|
| Max. Spindle Speed | 1600rpm |
| Spindle Nose | A2-11 |
| Spindle Bore | Φ132mm |
| Spindle Taper | Metric 120 |
| Height from Spindle Centre to Ground | 1100mm |
| Hydraulic Tailstock |
|
| Tailstock Quill | Φ130mm |
| Tailstock Quill Travel | 100mm |
| Tailstock Quill Center | Morse 5# |
| Axis X/Z |
|
| Travel X/Z | 355/1100mm |
| Rapid Travel Speed X/Z | 8/12mm |
| X axis ball screw dia/pitch | Φ32/8mm |
| Z axis ball screw dia/pitch | Φ40/10mm |
| Hydraulic Turret |
|
| Tool Position | 12mm(VDI 40) [BMT55] |
| Max. Live Tool Speed | 5000rpm |
| Turning Tool Size | 25 x 25mm |
| Max. Boring Tool Holder | Ф40mm |
| Max. Drilling Capacity | Ф16×0.2mm |
| Max. Tapping Capacity | M14×2/M20×1.5mm |
| Max. Milling Capacity | Φ20×12×40mm |
| Machining Accuracy |
|
| Positioning Accuracy X/Z | 0.012/0.016/51”mm |
| Repeatability X/Z | 0.006/0.008/20”mm |
| Other |
|
| Power Capacity | 55Kva |
| Spindle Motor Power | 22/26kw |
| Machine Dimension (LxWxH) | 5467 × 1945 × 2075mm |
| Net Weight | 7500kg |
Standard Accessories
- Siemens 828D
- Shopturn
- MPG
- 2000rpm belt drive spindle (Siemens 828D)

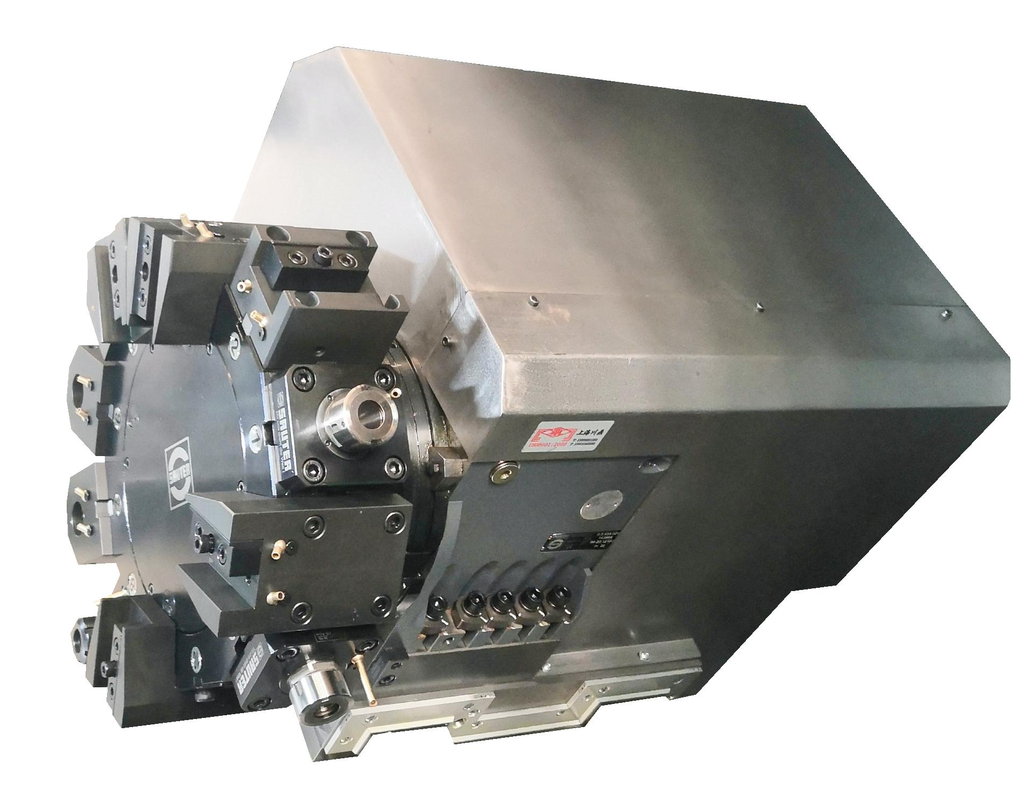

- 12 position BMT55 living turret
- 15″ hollow chuck and cylinder + 22/26kw motor +116mm bar capacity
- Hollow hydraulic cylinder
- Hydraulic Tailstock
- Hydraulic System
- Heat Exchanger
- Auto chip conveyer & chip cart
- Auto oil lubrication system
- Tri-color light
- Air gun
- Door lock switch
- Lighting Lamp
- Full enclosure splash guard
- Telescopic covers
Optional Accessories
- FANUC 0i TF(5) CNC system
- Auto parts catcher
- Bar feeder interface
- M30 Auto power off
- Hydraulic tailstock (only quill)
- Full hydraulic tailstock
- Bar feeder DH65
- Renishaw tools measure HPMA
- Air conditioner for cabinet
