• Casting designed using Finite element method
• High rigidity for precision components
• High standard specification
• One piece compact structure
| Model | HAWK TC-150M |
| Processing Range |
|
| Max. Swing Over Bed | Ф500mm |
| Max. Swing Over Saddle | Ф300mm |
| Max Turning Diameter | Ф240mm |
| Max. Turning Length | 320mm |
| Max. Bar Capacity | Ф44mm |
| Spindle |
|
| Max. Spindle Speed | 6000rpm |
| Spindle Nose | A2-5 |
| Spindle Bore | Φ56mm |
| Spindle Taper | Morse 6# |
| Height from Spindle Centre to Ground | 915mm |
| Axis X/Z |
|
| Travel X/Z | 180-350mm |
| Rapid Travel Speed X/Z | 30/30m/min |
| X axis Ball screw Dia/Pitch | Φ32/10mm |
| Z axis Ball screw Dia/Pitch | Φ32/10mm |
| Hydraulic Turret |
|
| Tool Position | 12mm (VDI 20) |
| Max. Live Tool Speed | 4000rpm |
| Turning Tool Shank Size | 16 x 16mm |
| Max Boring Tool Holder | Φ16mm |
| Max. Drilling Capacity | Φ12×0.14mm |
| Max. Tapping Capacity | M8×1.5/M14×1mm |
| Max. Milling Capacity | Φ12×8×45mm |
| Machining Accuracy |
|
| Positioning Accuracy X/Z /C | 0.006/0.006/51”mm |
| Repeatability X/Z/C | 0.004/0.004/20”mm |
| Other |
|
| Power Capacity | 20Kva |
| Spindle Motor Power | 5.5/7.5kw |
| Machine Dimension (LxWxH) | 1850 × 2250 × 1550mm |
| Net Weight | 2600Kg |
Standard Accessories
- Siemens 828D
- Shopturn
- MPG
- 6000rpm belt drive spindle (Siemens 828D)

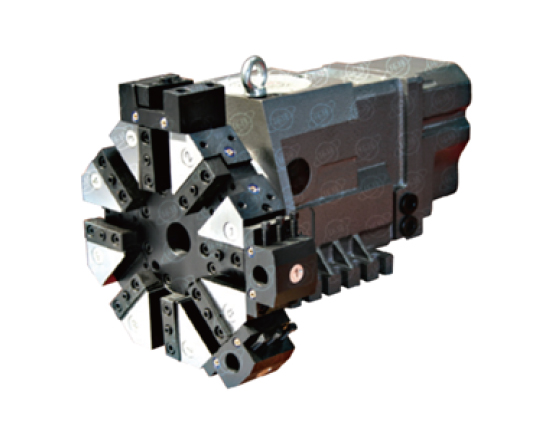

- 12 position VID living turret
- 6″ hollow hydraulic chuck with 1 set soft jaw
- Hollow hydraulic cylinder
- Hydraulic System
- Heat Exchanger
- Auto chip conveyer (rear) & chip cart
- Auto oil lubrication system
- Tri-color light
- Air gun
- Door lock switch
- Lighting Lamp
- Full enclosure splash guard
- Telescopic covers
Optional Accessories
- FANUC 0i TF(5) CNC system
- Auto parts catcher
- Bar feeder interface
- M30 Auto power off
- Hydraulic tailstock (only quill)
- Full hydraulic tailstock
- Bar feeder DH65
- Renishaw tools measure HPMA
- Air conditioner for cabinet
