Casting designed using Finite element method with high standard specification. 5000rpm max. spindle speed with 12mm (VDI 30) tool position.
| Model | HAWK TC-200ML |
| Processing Range |
|
| Max. Swing Over Bed | Ф550mm |
| Max. Swing Over Saddle | Ф370mm |
| Max Turning Diameter | Ф350mm |
| Max. Turning Length | 795mm |
| Max. Bar Capacity | Ф44mm |
| Spindle |
|
| Max. Spindle Speed | 5000rpm |
| Spindle Nose | A2-6 |
| Spindle Bore | Φ56mm |
| Spindle Taper | Morse 6# |
| Height from Spindle Centre to Ground | 1000mm |
| Hydraulic Tailstock |
|
| Tailstock Quill | Φ100mm |
| Tailstock Quill Travel | 100mm |
| Tailstock Quill Center | Morse 5#(Live center） |
| Axis X/Z |
|
| Travel X/Z | 240/830mm |
| Rapid Travel Speed X/Z | 24/30m/min |
| X axis Ball screw Dia/Pitch | Φ32/8mm |
| Z axis Ball screw Dia/Pitch | Φ32/10mm |
| Hydraulic Turret |
|
| Tool Position | 12mm (VDI 30) |
| Max. Live Tool Speed | 5000rpm |
| Turning Tool Shank Size | 20 x 20mm |
| Max Boring Tool Holder | Φ25mm |
| Max. Drilling Capacity | Φ14×0.15mm |
| Max. Tapping Capacity | M10×1.5/M24×1 |
| Max. Milling Capacity | Φ20×10×40mm |
| Machining Accuracy |
|
| Positioning Accuracy X/Z /C | 0.008/0.008/51”mm |
| Repeatability X/Z/C | 0.004/0.004/20”mm |
| Other |
|
| Power Capacity | 40Kva |
| Spindle Motor Power | 7.5/11kw |
| Machine Dimension (LxWxH) | 4160×1820×1820mm |
| Net Weight | 4200Kg |
Standard Accessories
- Siemens 828D
- Shopturn
- MPG
- 5000rpm belt drive spindle (Siemens 828D)

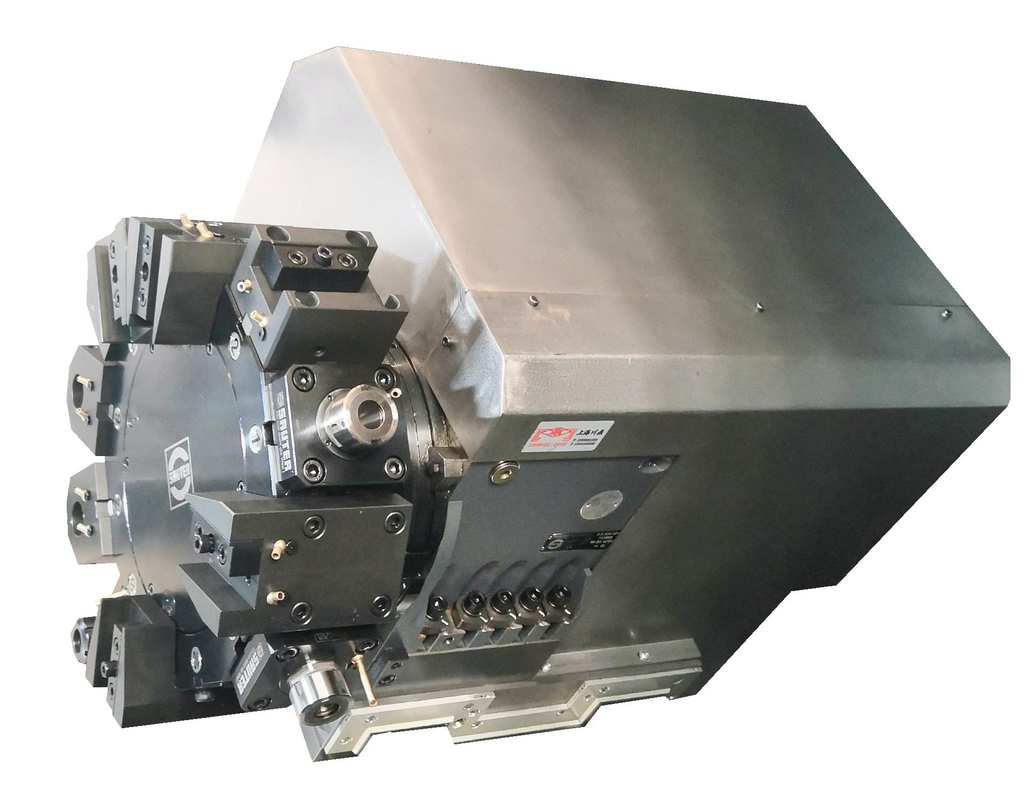

- 12 position BMT55 living turret
- 8″ hollow hydraulic chuck with 1 set soft jaw
- Hollow hydraulic cylinder
- Hydraulic System
- Heat Exchanger
- Auto chip conveyer & chip cart
- Auto oil lubrication system
- Tri-color light
- Air gun
- Door lock switch
- Lighting Lamp
- Full enclosure splash guard
- Telescopic covers
Optional Accessories
- FANUC 0i TF(5) CNC system
- Auto parts catcher
- Bar feeder interface
- M30 Auto power off
- Hydraulic tailstock (only quill)
- Full hydraulic tailstock
- Bar feeder DH65
- Renishaw tools measure HPMA
- Air conditioner for cabinet
