3 Axis Turning Centre CNC Machine with 12 position BMT55 living turret, Belt Drive Spindle and Auto Chip Conveyer.
| Model | HAWK TC-250M |
| Processing Range |
|
| Max. Swing Over Bed | Ф570mm |
| Max. Swing Over Saddle | Ф400mm |
| Max Turning Diameter | Ф320mm |
| Max. Turning Length | 475mm |
| Max. Bar Capacity | Ф51mm |
| Spindle |
|
| Max. Spindle Speed | 4000rpm |
| Spindle Nose | A2-6 |
| Spindle Bore | Φ65mm |
| Spindle Taper | Metric 80 |
| Height from Spindle Centre to Ground | 1000mm |
| Hydraulic Tailstock |
|
| Tailstock Quill | Φ100mm |
| Tailstock Quill Travel | 100mm |
| Tailstock Quill Center | Morse 5#(Live center） |
| Axis X/Z |
|
| Travel X/Z | 235/530mm |
| Rapid Travel Speed X/Z | 24/30m/min |
| X axis Ball screw Dia/Pitch | Φ32/8mm |
| Z axis Ball screw Dia/Pitch | Φ40/12mm |
| Hydraulic Turret |
|
| Tool Position | 12mm (BMT55) (VDI 40) |
| Max. Live Tool Speed | 6000rpm |
| Turning Tool Shank Size | 25 x 25mm |
| Max Boring Tool Holder | Φ32mm |
| Max. Drilling Capacity | Φ14×0.16mm |
| Max. Tapping Capacity | M10×1.5/M24×1 |
| Max. Milling Capacity | Φ16×12×40mm |
| Machining Accuracy |
|
| Positioning Accuracy X/Z /C | 0.008/0.008/51”mm |
| Repeatability X/Z/C | 0.004/0.004/20”mm |
| Other |
|
| Power Capacity | 40Kva |
| Spindle Motor Power | 11/15kw |
| Machine Dimension (LxWxH) | 4570 × 1845 × 1955mm |
| Net Weight | 4200Kg |
Standard Accessories
- Siemens 828D
- Shopturn
- MPG
- 4000rpm belt drive spindle (Siemens 828D)

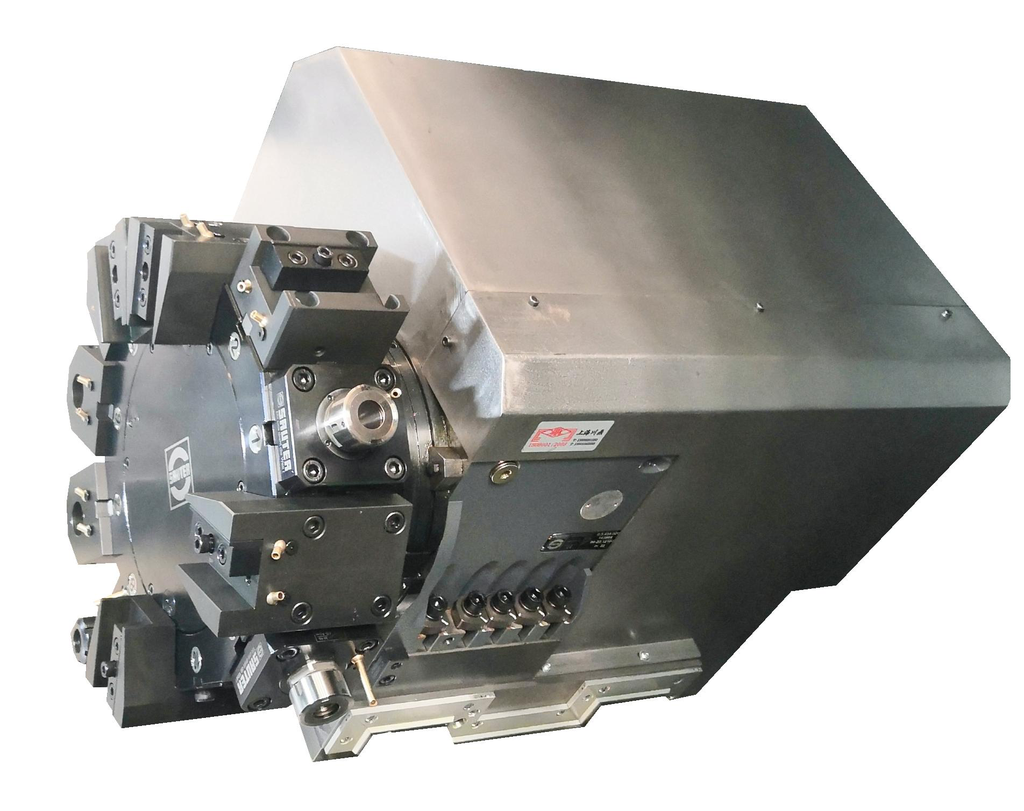

- 12 position BMT55 living turret
- 10″ hollow hydraulic chuck with 1 set soft jaw
- Hollow hydraulic cylinder
- Hydraulic Tailstock
- Hydraulic System
- Heat Exchanger
- Auto chip conveyer & chip cart
- Auto oil lubrication system
- Tri-color light
- Air gun
- Door lock switch
- Lighting Lamp
- Full enclosure splash guard
- Telescopic covers
Optional Accessories
- FANUC 0i TF(5) CNC system
- Auto parts catcher
- Bar feeder interface
- M30 Auto power off
- Hydraulic tailstock (only quill)
- Full hydraulic tailstock
- Bar feeder DH65
- Renishaw tools measure HPMA
- Air conditioner for cabinet
