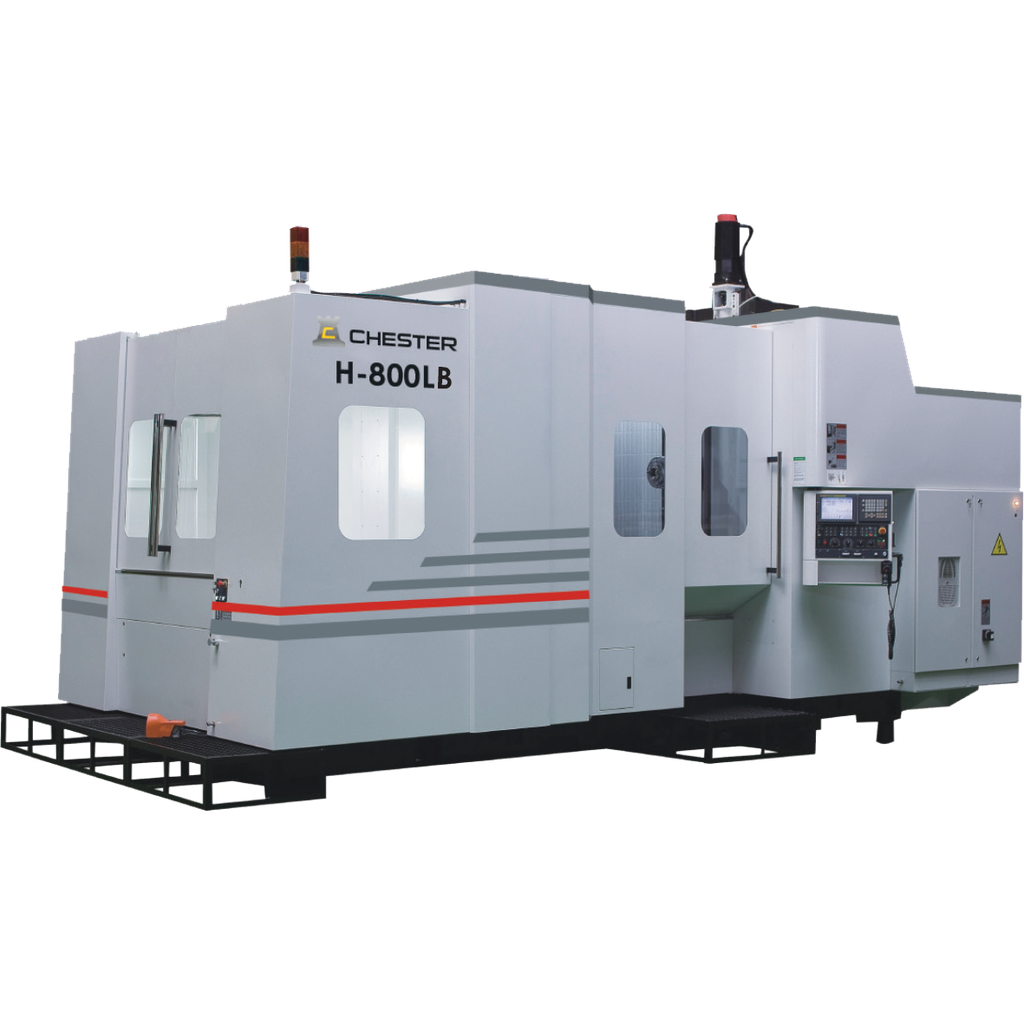

CHESTER H800LB HORIZONTAL MACHINING CENTRE
Please contact our Sales Team for pricing: [email protected]. Or Call us Today: 01543 448940
Spindle Taper: 7/24 No.50
CNC Machining Centres
The Chester twin pallet horizontal machining centres deliver productivity and performance, the key to this is to reduce the non-machining time to enhance the cutting efficiencies.
The range is divided into High Speed and High Performance CNC machines.
Precision twin pallet HMC CNC, ideal for boosting productivity and production.
| Technical Specifications | H-800LB |
| Travel |
| Travel,X/Y/Z | 1300/1200/1200mm |
| Spindle Center to Pallet Face | 100-1300mm |
| Spindle Nose to Pallet Face | 200-1400mm |
| Pallet |
| Pallet Size | 800x800mm |
| Maximum Workpiece | φ1300mm |
| Maximum Pallet Load | 2000kg |
| Maximum Workpiece Height | 1300mm |
| Pallet Surface Configuration | 24-M16 Pitch 160 |
| Pallet Indexing | 1° |
| Spindle |
| Spindle Max.Speed | 6000rpm |
| Low/Hight Gear Variation | 1500rpm |
| Spindle Max.Torque(Standard) | 660Nm |
| Spindle Taper | 7/24 Taper No.50 |
| Spindle Bearing ld | 100mm |
| Spindle Transmission | Belt+ZF |
| Feed Rate |
| Max. X/Y/Z Rapid Speed | 32000mm/min |
| Cutting Feed Rate | 1-10000mm/min |
| Job Feed Rate | 1260mm/min |
| Automatic Tool Change (ATC) |
| Type of Tool Shank | ISO 50 or BBT-50 |
| Tool Capacity | 60 pc |
| Max.Tool Diameter(without Adjacent Tool) | 125(250)mm |
| Max.Tool Length | 600mm |
| Max.Tool Weight | 30kg |
| ATC Changing Time(T to T) | 8sec |
| Tool Selection Method | Fixed Address |
| Automatic Pallet Changer (APC) |
| Number of Pallets | 2 |
| Pallet Changing Type | Rotary Type |
| Time for APC | 0iMF |
| Controller System |
| FANUC | 18i |
| Motor |
|
| Spindle Motor,Power | 22/26kw(29.48/34.84hp) |
| Spindle Motor | 165Nm |
| X/Y/Z/B Axis Motor | 7/6/7/3kw(9.38/8.04/9.38/4.02hp) |
| Motor,Hydraulic System | 3.7kw(4.96hp) |
| Motor,Coolant Pump System | 1.6kw(2.14hp) |
| Power Supply |
|
| Power Requirement | 42kva |
| Capacity of Oil/Coolant Tank |
|
| Capacity,Hydraulic System | 60L |
| Capacity,Lubrication System | 4L |
| Capacity,Coolant System | 850L |
| Mechnical Specifications |
|
| Machine Dimensions | 6991x4326x3948mm |
| Weight | 25000kg |
STANDARD ACCESSORIES
• Spindle Rpm 6000rpm
• Spindle Oil Cooling System
• Spindle Air Seal System
• Spindle Direct Transmission
• Spindle Direct Transmission+ZF Gear
• 3-Axis Roller Linear Rail
• 3-Axis Hollow Ballscrew Cooling System
• Pallet 1 ˚division
• Pallet M16 Fixing Holes
• Splash Ring
• Track Type Chip Conveyer System
• Chip Cart
• Indoor Chip Auger
• Mechanical Oil-coolant Separator
• Overhead Chip Wash-down System
• Dis-type Coolant Separator
• Front Door / Side Door Safety Switch
• Tool Storage Capacity 60T
• Tool Specification BBT
• Tool Specification NO.50
• M30 Automatic Power-off System
• Working Light
• Warm Light
• Electrical Cabin Heat Exchange System
• Fanuc 0iMF
OPTIONAL ACCESSORIES
• 3-Axis Linear Scale System
• 4-Axis Encoder
• Pallet 0.001” Division
• Pallet T-slot
• Spindle Air Blow System
• Coolant Through Spindle
• CE Safety Specifications
• Tool Length Measuring System NC-4S
• Workpiece Measuring System RMP-60
• Tool Breakage Detection(Magazine)
• Tool Specification CAT
• Electrical Cabin Air-condition System
• Fanuc 31i
• Oil Mist Collector Unit
• Rotary Window
