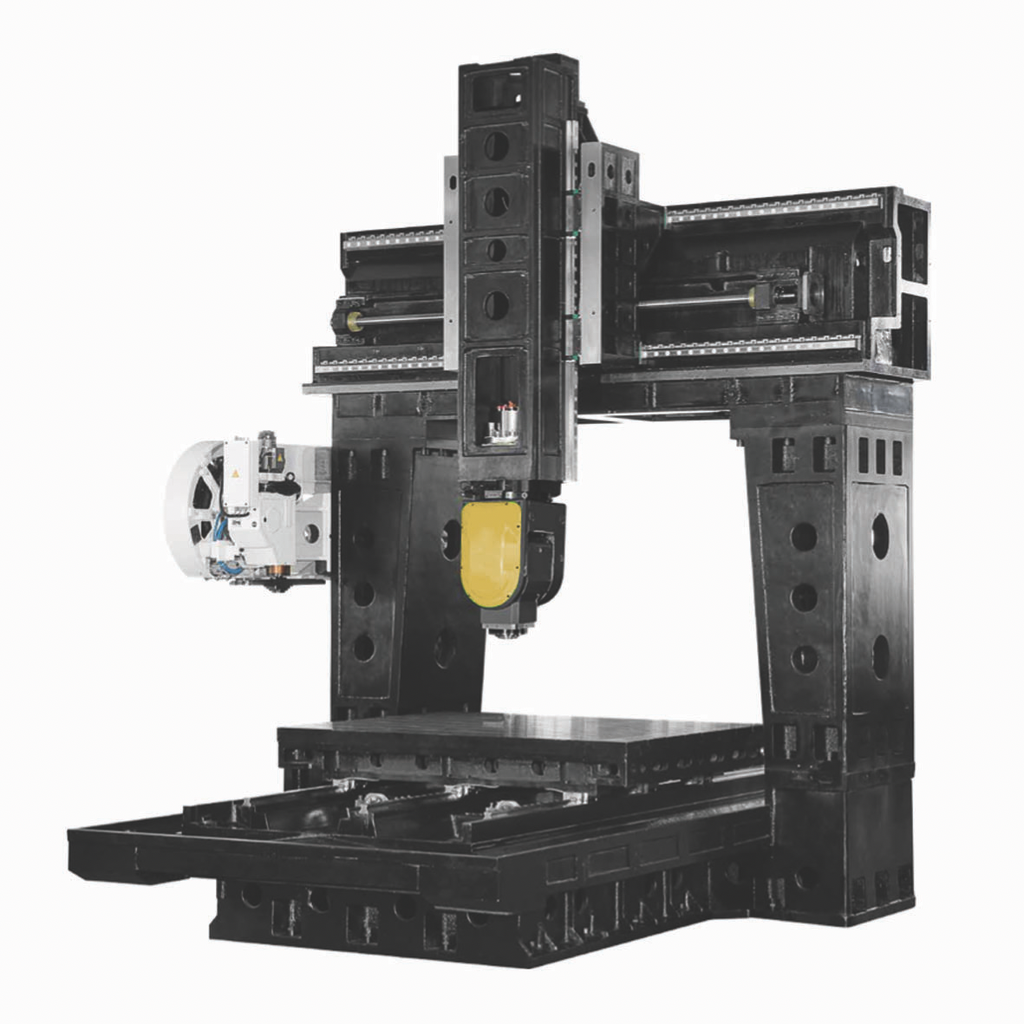

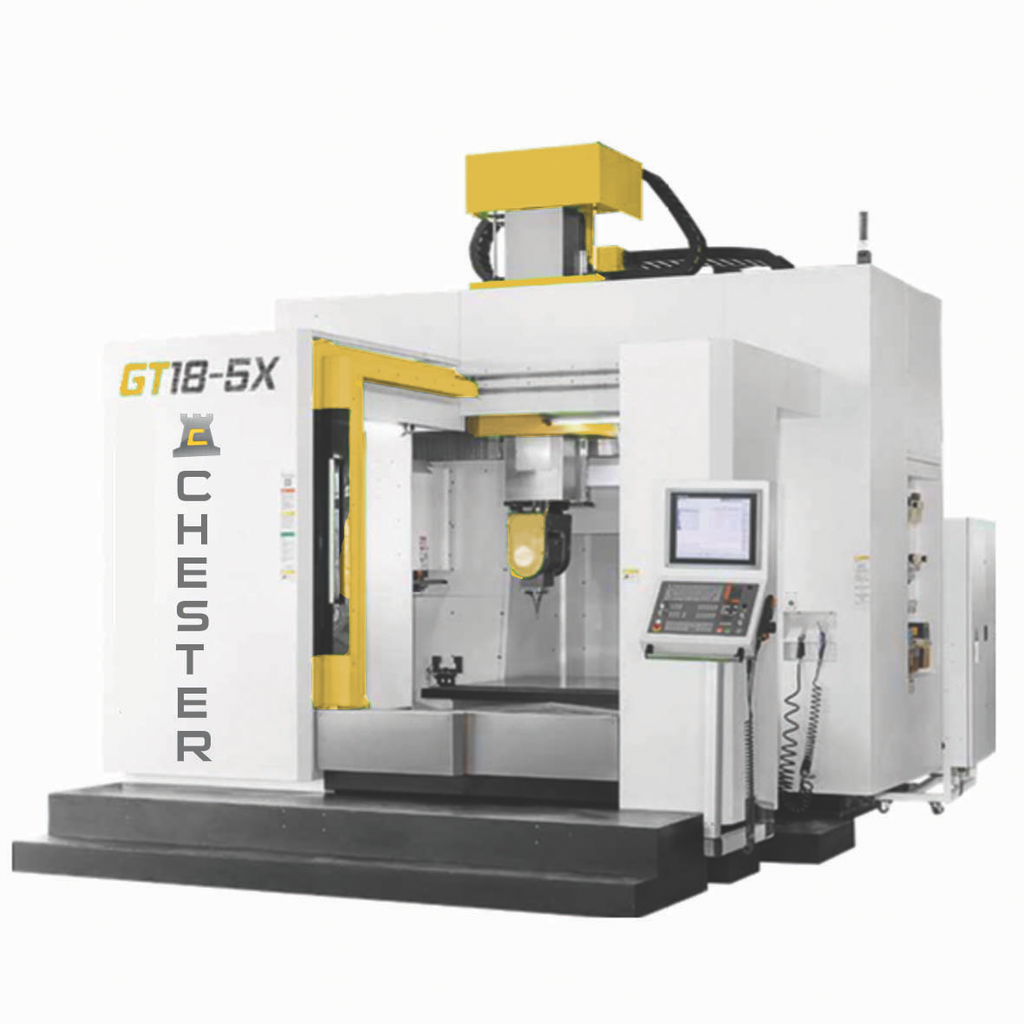

CHESTER 5 AXES GANTRY MILLING MACHINE • GT-5X SERIES • GT33-5X
Please contact our Sales Team for pricing: [email protected]. Or Call us Today: 01543 448940
Table Size: 3300 x 1700mm
Spindle Taper: HSK A63
CNC Machining Centres
• Built-in type spindle, HSK A63, 24000 rpm
• 60 pockets chain type servo tool changer
• Heidenhain linear scales on three axes
• Oil cooled ballscrew
• Dual drive system with two ballscrew
• Direct drive servo motor for A/C axes
A high performance 5 Axis CNC Mill, the GT-5X series is ideal for machining.
| Technical Specifications | GT33-5X |
| Table |
|
| Table size | 3300×1700mm |
| T-slot (width x number x distance) | 22×9×170mm |
| Max. load | 10000kg |
| A (B)/ C Axis | ±108°/±270° |
| Travel |
|
| X/Y/Z Travel | 3300 / 2700 / 800mm |
| Spindle nose to table | 100 – 900mm |
| 90° Spindle centre to the table | 410 – 1210mm |
| Distance between columns | 1960mm |
| Spindle |
|
| Spindle taper | HSK A63 |
| Motor power | 42/56.7 kW |
| Motor torque | 68/90.2 Nm |
| Spindle speed | 20000rpm |
| Feed |
|
| Rapid feed X/Y/Z | 24/24/30m/min |
| Cutting speed | 1-12000 mm/min |
| A(B)/C Max. Speed | 50rpm |
| Tool Changer |
|
| Number of tools | 60 pcs |
| Max. tool length | 300mm |
| Max. tool diameter | 78/150mm (next release) |
| Max. tool weight | 8kg |
| Accuracy (VDI 3441) |
|
| Positioning accuracy | 0.015mm / Full Travel |
| Repeatability accuracy | 0.010mm / Full Travel |
| Dimensions & Weight |
|
| Dimensions | 10100 x 5830 x 4830mm |
| Weight | 30000kg |
STANDARD ACCESSORIES
• Full enclosed splash guard
• Motor spindle HSK A63 24000 rpm
• 60 pockets chain type tool changer
• Chip conveyor (two screw type and one chain type)
• Air-conditioned electrical cabinet
• High precision spindle water cooler
• Linear scales
• Rigid tapping
• Ethernet, CF card and USB interface
• Automatic lubrication system
• Coolant system
• Air blast during cutting
• LED working lamp
• End of program light
• Electronic handwheel (MPG)
• Tool box
• Leveling bolts and blocks
• Coolant gun
• Air gun
• User Manual
OPTIONAL ACCESSORIES
• Built-in motor spindle HSK A100 15000rpm_40/50kW_103/129Nm, 40 pockets tool changer
• CTS Coolant through spindle + ATS
• Oil cooled ballscrew
• Oil skimmer
• Workpiece probe
• Tool probe
• Dynamic Collision Monitoring(DCM)
• Kinematics
