- Machine Body is Resin Sand, Non Reniun Force Advanced Casting.
- X/Y/Z Axis Taiwan Class P Liner Guide Way, Imported Double Nut Ball Screw.
- Table HT300 High Frequency Quenching.
- NSK Bearings.

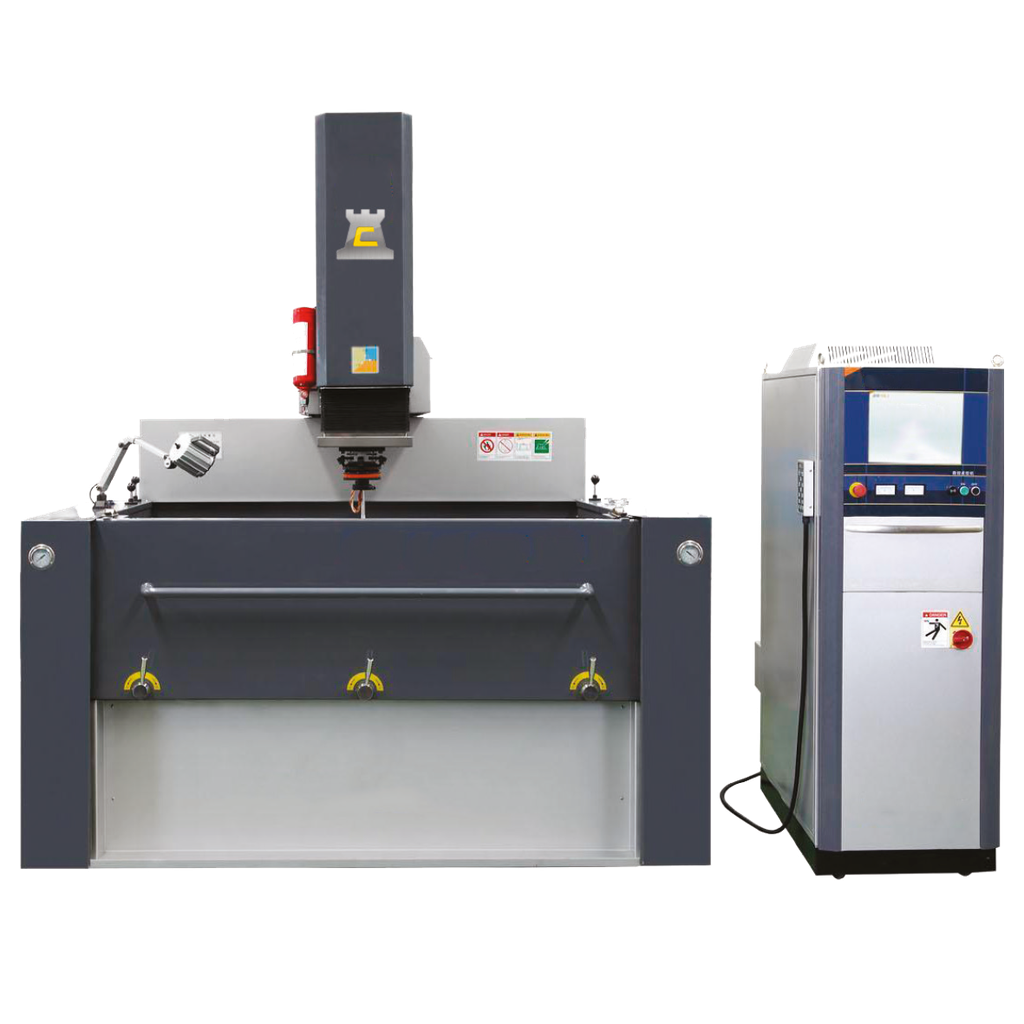

High performance CNC EDM Sinker Machines. With Digital Servo System Drive 3 Axis, and Interactive Interface.
• Digital Servo System Drive 3 Axis, Flexible Serve Strategy choice.
• Interactive Interface, Simple, Intuitive and Convenient.
• Real Time Monitoring of Single Pulse. Extensive Machining Database for easy Operation.
• Safety Devices for Level Control, Liquid Temperature Control, Fire Control, Arcing.
• Short Adaptive Processing. ISO-G Code Program.
| Model | EDM4535C |
| Working Tank | 1200x850x450mm |
| Working Table Size | 700x400mm |
| Travels |
|
| X Axis | 450mm |
| Y Axis | 350mm |
| Z Axis | 300mm |
| Max.Distance between Electrode and Working Table | Min:300mm;
Max:600mm |
| Work Table Load Weight | 1000kg |
| Spindle Hold Weight | 80kg |
| Tank Oil Level Limitation | 290mm |
| Size of Oil Reservoir | 800L |
| Servo Control Type | AC/DC |
| Rated Current | 60A |
| Oil Tank Size | 1700x1500x450mm |
| Machine Dimensions | 1640x2200x2250mm |
| Machine Weight | 3500kg |
Standard Accessories:
• Controller
• Oil Tank
