- Machine Body is Resin Sand, Non Reniun Force Advanced Casting.
- X/Y/Z Axis Taiwan Class P Liner Guide Way, Imported Double Nut Ball Screw.
- Table HT300 High Frequency Quenching.
- NSK Bearings.

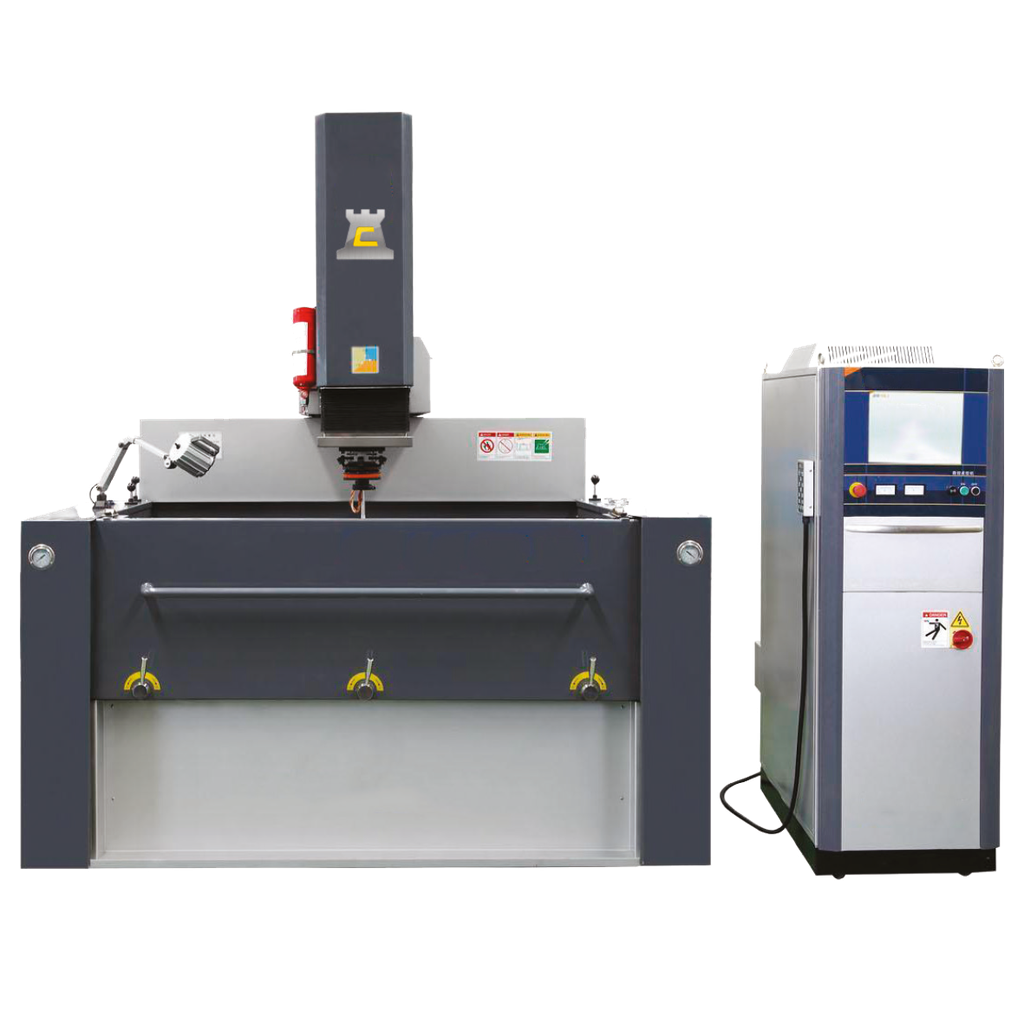

High performance CNC EDM Sinker Machines. With Digital Servo System Drive 3 Axis, and Interactive Interface.
• Digital Servo System Drive 3 Axis, Flexible Serve Strategy choice.
• Interactive Interface, Simple, Intuitive and Convenient.
• Real Time Monitoring of Single Pulse. Extensive Machining Database for easy Operation.
• Safety Devices for Level Control, Liquid Temperature Control, Fire Control, Arcing.
• Short Adaptive Processing. ISO-G Code Program.
| Model | EDM16080C |
| Working Tank | 2628x1521x700mm |
| Working Table Size | 1700x1000mm |
| Travels |
|
| X Axis | Single Spindle:1600mm;
Double Spindle:1100mm |
| Y Axis | 800mm |
| Z Axis | 500mm |
| Max.Distance between Electrode and Working Table | Min:600mm; Max:1100mm |
| Work Table Load Weight | 6000kg |
| Spindle Hold Weight | 220kg |
| Tank Oil Level Limitation | 600mm |
| Size of Oil Reservoir | 4000L |
| Servo Control Type | AC |
| Rated Current | Single Spindle:100A
Double Spindle:200A |
| Oil Tank Size | 2300x1450x630*2mm |
| Machine Dimensions | 3600x3800x3850mm |
| Machine Weight | Single Spindle:11000kg;
Double Spindle:12500kg |
Standard Accessories:
• Controller
• Oil Tank
