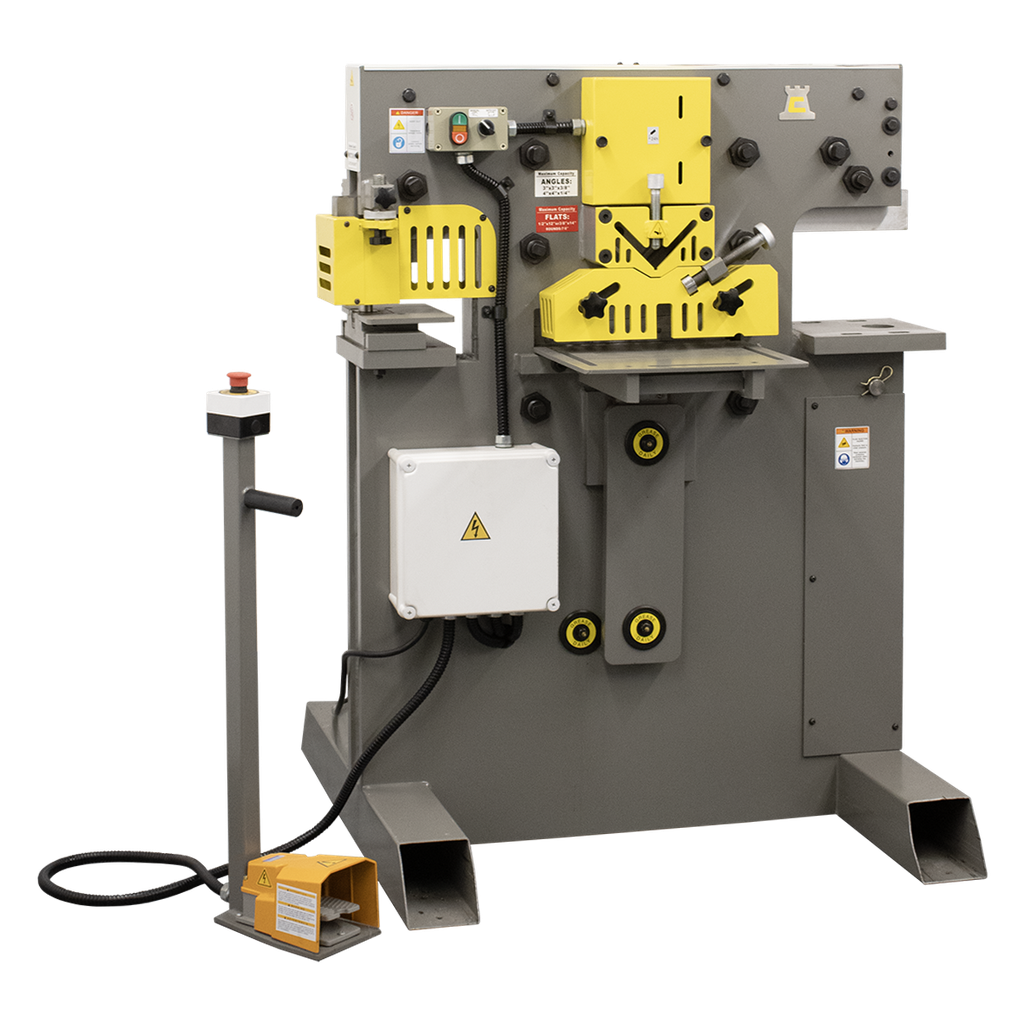

Our Hydraulic punch & shears feature cutting angle bar blades, punch die, and notching blades.
Model | IW55 |
Punching Max. Capacity | 1-1/6" dia. in 5/8" plate |
Flat Bar Shearing Max. Width | 5/8"x12" or 3/8"x1 4" |
Flat Bar Shearing Max. Thickness | 3/4x4" |
Angle Shearing Max. Size | 4"x4"x1/4" or 3"x3x3/8" |
Rated Capacity | 55 Ton |
Throat Depth | |
Open Height | 8" |
Shut Height | 6-3/4" |
Stroke | 1-1/4" |
Motor Power | 4.5kW (6hp) |
Dimensions (L x W x H) | 995 x 1060 x 1367mm |
Net Weight | 825kg |
Standard Accessories
• One Set of Punch Die
• One Set of Cutting Round-Square Bar Blade (Round and Square Bar Blade)
• One Set of Cutting Angle Bar Blade (“L” Bar Blade)
• One Set of Notching Blade
• One Set of Cutting Flat Bar Blade
• Tool Box
• Operation Manual
Optional Accessories
• Iron Shearing Bar Blade
• T Steel Shearing Blade
• Channel Shearing Blade
• Punch Set Blades
