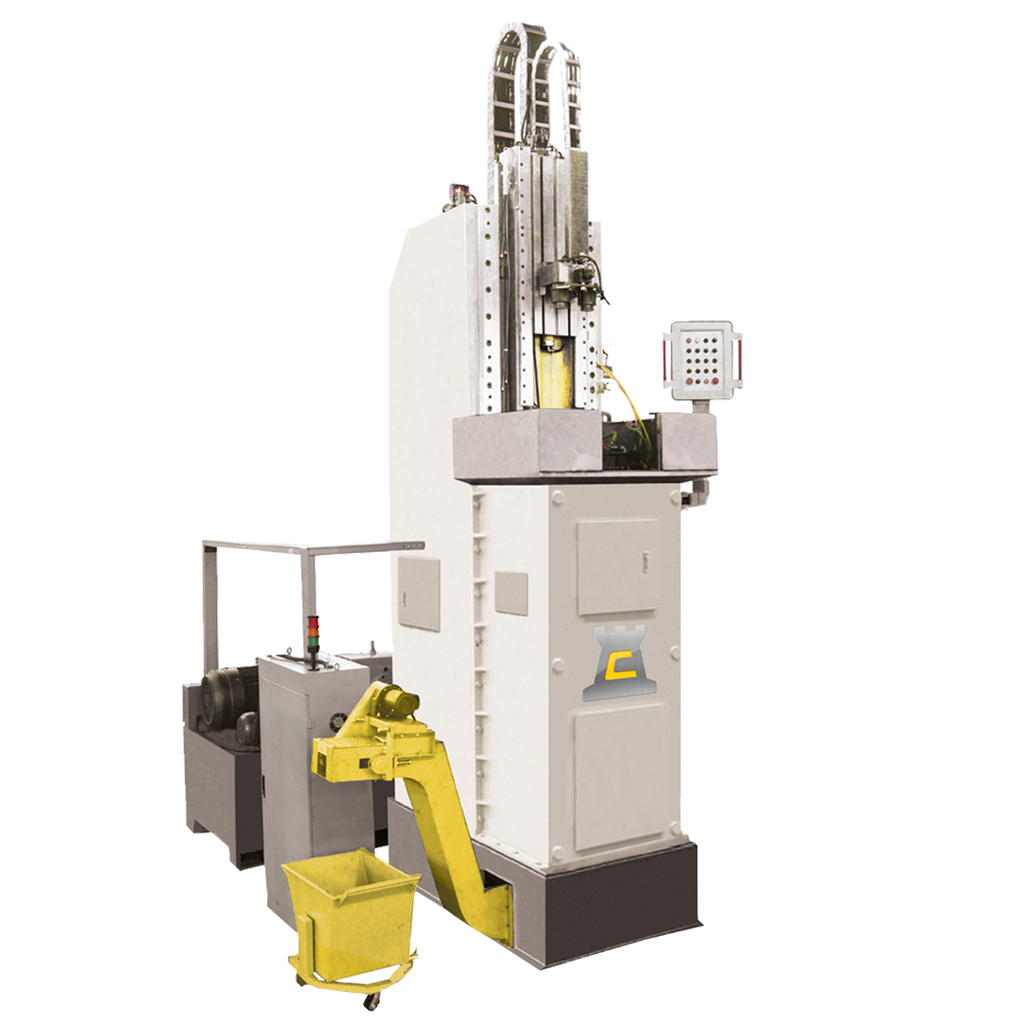

Precision broaching machine with variable speed and lubrication system.
| Model | VBR16 |
| Rated Tension x Max. Travel | 200mmx1600KN |
| Broaching Speed (stepless) | 42408m/min |
| Return Speed of Broach | 42417m/min |
| Dimension of Worktable | 600x520mm |
| Hole Diameter of Work Table | 200mm |
| Hole Diameter of Faceplate | 130mm |
| Distance From Surface Table to Base | 2589mm |
| Distance From End Face of Auxiliary Tool Base To Surface of Table | 750-1500mm |
| Rate of Flow of Main Hydraulic Pump | 300L/min |
| Verticality of Center Line of Broach Rear Hole on Tested Workpiece Against Base | 0.06/200mm |
| Surface Roughness of Broach on Tested Workpiece | > Ra3.2 |
| Max. Work Pressure | 10Mpa |
| Main Motor | 30kw(40.8hp) |
| Overall Dimensions | 3710x2100x4556mm |
| Net Weight | 9000kg |
Standard Accessories
• Tool Chuck
• Auxiliary Tool Chuck
• Faceplate
• Hydraulic Station
• Lubrication System
• Cooling System
• Automatic Magnetic Chip
• Conveyor
• Working Lamp
• Splash Guard
Optional Accessories
• Oil Cooler
• Broaching Tools
