• Driven by hydraulic power, with variable speed
• PLC and Touch Screen
• Automatic Cycling, Semi Automatic Cycling and Segmented Cycling available
• Centralised Lubrication
•Chip Conveyor and Coolant System

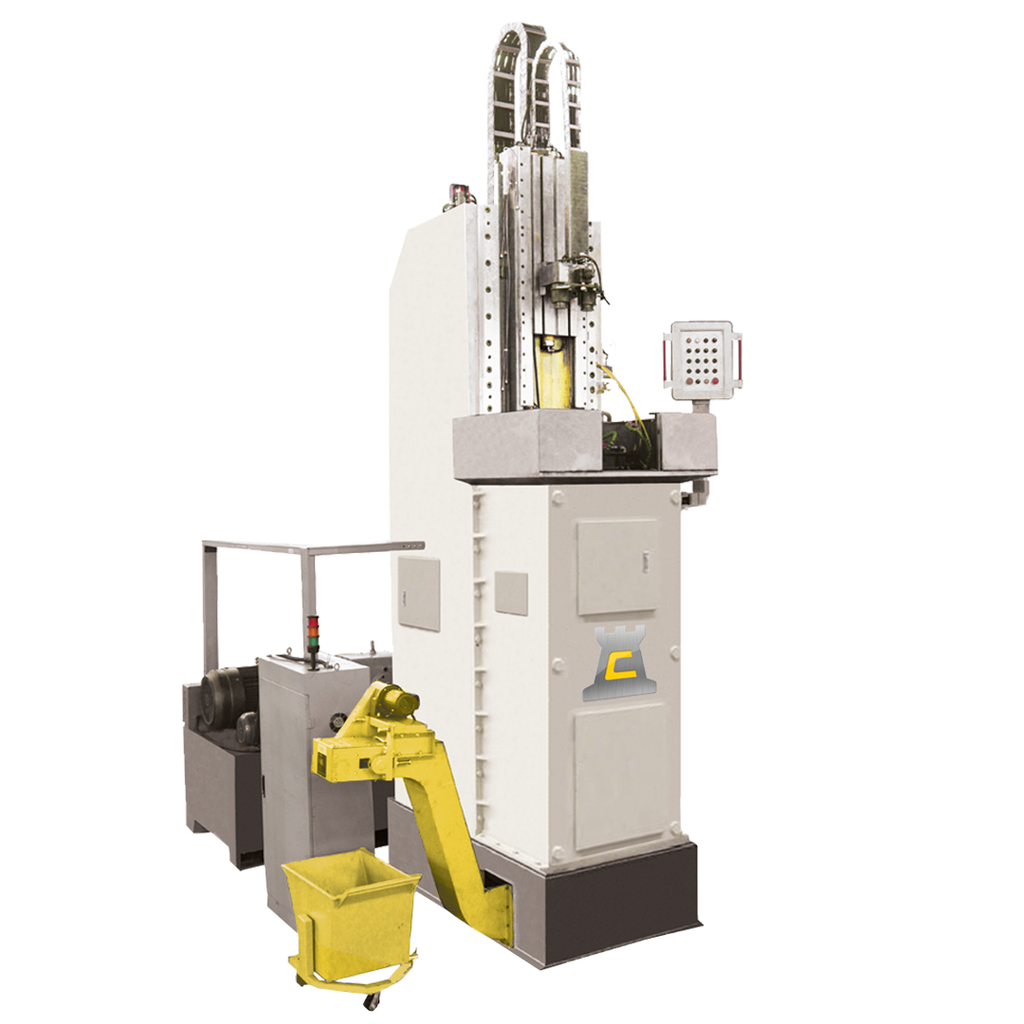

| Model | VBR12 |
| Rated Tension x Max. Travel | 100mmx1250KN |
| Broaching Speed (stepless) | 42408m/min |
| Return Speed of Broach | 42417m/min |
| Dimension of Worktable | 450x450mm |
| Hole Diameter of Work Table | 150mm |
| Hole Diameter of Faceplate | 100mm |
| Distance From Surface Table to Base | 1670mm |
| Distance From End Face of Auxiliary Tool Base To Surface of Table | 725-1415mm |
| Rate of Flow of Main Hydraulic Pump | 200L/min |
| Verticality of Center Line of Broach Rear Hole on Tested Workpiece Against Base | 0.06/200mm |
| Surface Roughness of Broach on Tested Workpiece | > Ra3.2 |
| Max. Work Pressure | 10Mpa |
| Main Motor | 17kw(23.12hp) |
| Overall Dimensions | 3312x1343x3233mm |
| Net Weight | 5000kg |
Standard Accessories
• Tool Chuck
• Auxiliary Tool Chuck
• Faceplate
• Hydraulic Station
• Lubrication System
• Cooling System
• Automatic Magnetic Chip
• Conveyor
• Working Lamp
• Splash Guard
Optional Accessories
• Oil Cooler
• Broaching Tools
