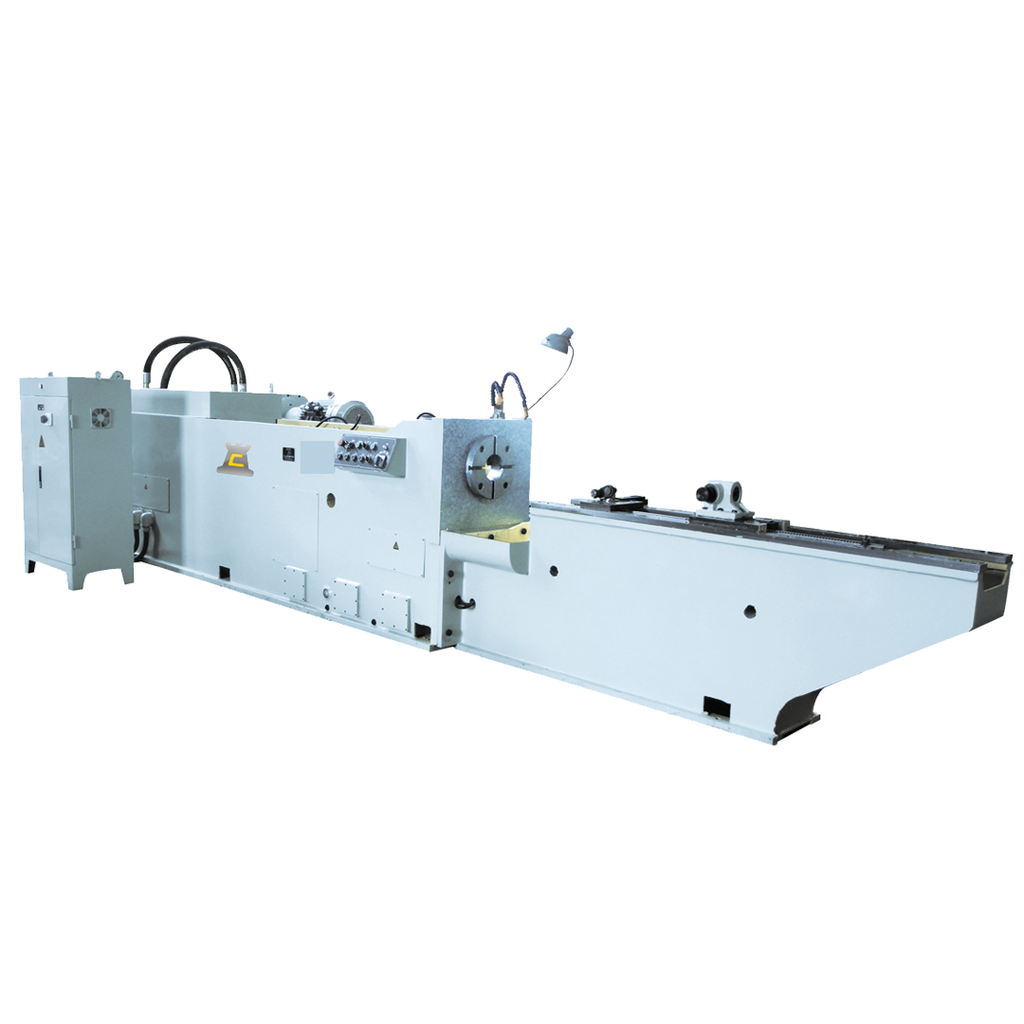

High precision horizontal broaching machine, ideal for workshops.
| Model | HBR80 |
| Rated Pulling Force | 800kn |
| Max.Stroke Length | 2000mm |
| Length Range of Broaching Tool | 600-2050mm |
| Hole Diameter of Worktable | 250mm |
| Max. Outer Diameter of Workpiece | 680mm |
| Working Speed | 1-4.2m/min |
| Returning Speed | 5-12m/min |
| Motor | 75kw(102hp) |
| Verticality Of Center Line Of Broach Rear Hole on Tested Workpiece Against Base | 0.06/200mm |
| Overall Dimensions | 8460x3000x1454mm |
| Net Weight | 12500kg |
Standard Acessories
• Tool Chuck
• Auxiliary Tool Chuck
• Faceplate
• Hydraulic Station
• Lubrication System
• Cooling Pump
• Chip-removal System
Optional Accessories
• Oil Cooler
• Air Spray Gun
• Broaching Tool
• Automatic Chip Conveyor (with chip trolley)
