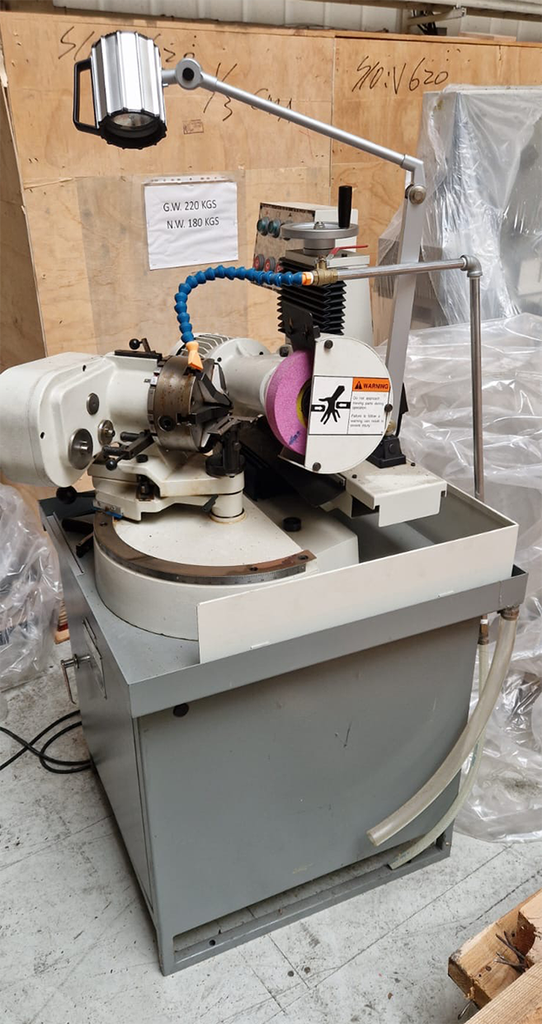

An Ex Display ZB50 Cutter Grinder, £10,720 exc VAT and delivery.
| MODEL | ZB-50 |
| Drill Size | (Ø3-Ø50mm) straight or taper shank (1,2,3,4,5,6 flute) |
| Point Angles | 40º-180º |
| Clearance angle | 0º-18º |
| Motor | 0.38kw(0.5hp) single or 3 phase totally enclosed fan cooled |
| Grinding Wheels | Main wheel 7” x 1 ¼” x 1 ¼” |
| (180mm x 32mm x 31.75mm) |
| Point thinning dish wheel |
| 6 5/8”x7/8”x1 1/4” |
| (165mm x 21mm x 31.75mm) |
| Grinding the End of End Mills | 2,3,4,6,12 flute |
| X Stroke | 240mm |
| Y Stroke | 180mm |
| Net Weight | 300kg |
| Dimensions | 970mm x 910mm x1370mm |
Comes with 12-months parts-only warranty
