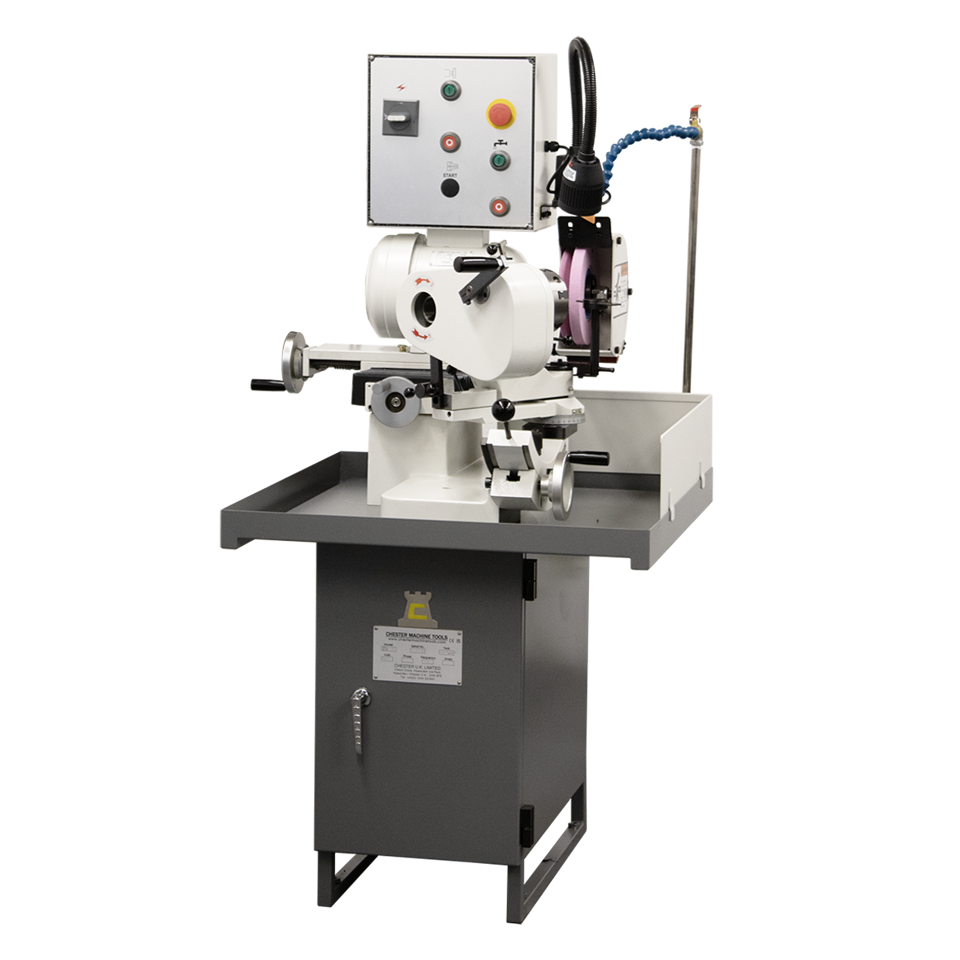

Brierley ZB32 Drill & Cutter Grinder

Grind accurate points with ease with our cutter grinding machine.

• Optional Air bearing has a hard chromed spindle for long life, standard 5C collets.

• The tooth rest finger is easily adjustable by turning a knurled knob on either end of the tooth rest bracket.

• “Clearance angle collar” marks angular setting easy-swivels universally for radial relief sharpening.

• Optional Air bearing fixture is precision honed and capable of grinding to tight tolerances.

• Tools sharpened on an air bearing fixture cut smoother, the spindle floats on friction “finger sensitive” control for sharpening end mills as small as 2mm, sharpens all over-periphery, end teeth, notches, flute faces.

• Air bearing fixture is easily mounted to ZB-32A grinder.

• Cutting tool capacity – Ø42mm shank, 250mm flute length.

Optional Accessories

• Flood Coolant System. (Increases wheel life and prevents burning of drill)

• Diamond Wheels for Carbide Drills

• C.B.N. Wheels (one side chamfer) for Point Grinding & Point Splitting

• Wheel Balancer & Arbor

• Cam for Sheet Metal Point Drills

• Extra Grinding Wheel Flange for Cup Wheel

• Cup Grinding Wheel

• Cam for Left Hand Drills

• Cam for Sheet Metal Point Drills

• Radial Relief Attachment

Also available with motorised head

Optional – The radial relief attachment is especially designed for quick and accurate grinding of body reliefs of end mills as well as cutters and drills.
