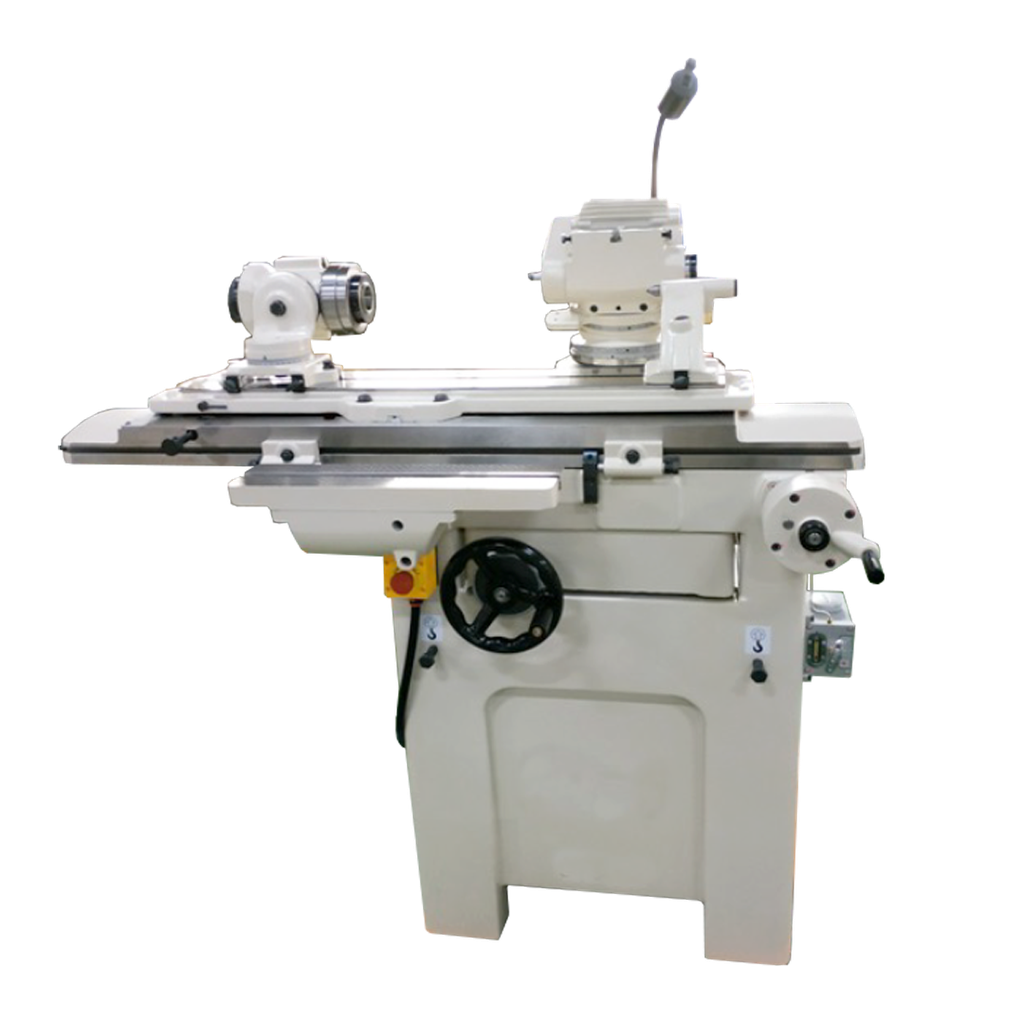

Universal Tool & Cutter Grinder UTG4070

Universal Tool & Cutter Grinder UTG4070

Please contact our Sales Team for pricing: [email protected]. Or Call us Today: 01543 448940
Grinding Machines
Contact Us

Please contact our team for a custom quote and competitive pricing

Add to cart
Add to wishlist
Price
£ 0.00 £ 0.00

Stroke

Longitudinal Movement of Table (X Axis)400mm
Cross Movement of Saddle (Y Axis)250mm
Vertical Movement of Wheel Head (Z Axis)250mm
Distance between Centres700mm
Distance between Tailstock and Work head580mm
Workbench

T-slot15 mm (+0.05 mm – +0.10 mm)
Working Range of Table135 x 490mm
Rotative Angle of Table±60°
JOG Adjustment of Table±10°
Workhead

TaperOne end MT5 / the other NT50
Wheelhead

Inclination of Wheel head±15°
Rotative Angle of Wheel head360°
Distance between Centre of Spindle and TableMax. 300 mm / Min. 50 mm
Distance between Centre of Spindle and T-slotMax. 415 mm / Min. 165 mm
Peak power1.1kW (1.5hp)
Grinding Wheel Spindle speed2600 / 3700 / 6200 rpm
Machine Dimensions

Dimensions (LxWxH)1735 x 1550 x 1480mm
Weight970kg

Standard Accessories

  • Levelling Blocks
  • Work Head
  • Right-hand Tailstock
  • Centre Gauge
  • Ejector Rod
  • MT5 Centre for Work Head Spindle
  • Diamond Dresser Holder
  • Grinding Wheel washer set
  • Wheel Guard (Outer Diameter of Grinding Wheel Max Ø90, Ø110, Ø125 & Ø150)
  • Wheel Guard Holder (short & long)
  • 2 sets of Grinding Wheel Flanges
  • 4″ Grinding Wheel Flange Extension (Ø3175mm)
  • Grinding Wheels (PA 90D x 38T x 3175H, GC 125D x 38T x 3175H, WA 150D x 13T x 3175H, GC 150D x 13T x 3175H, WA 150D x 19T x 3175H)
  • Draw-in Bold for Work Head and Spacer (metric thread)
  • Wheel Spanner
  • Collet Wrench
  • Fixture Rod
  • Open End Wrench (17-19mm)
  • Combination Wrench (19mm & 24mm)
  • Tool Box & Adjusting Tool

Optional Accessories

  • Face Mill Grinding Attachment
  • Radius grinding attachment (No1, & No 2)
  • Helical grinding attachment (MT4 Holder included)
  • Cylindrical Grinding attachment
  • Internal Grinding attachment
  • Work head indexing attachment (24 notched & 20 notched)
  • 4″ 3 Jaw Chuck with Flange
  • Extended Grinding Wheel spindle
  • Surface Grinding attachment
  • Drill pointing attachment
  • Lathe & Planer tool Grinding attachment
  • Spring collet set (6,8,10,12,16,20,25mm,7pcs/set)-MT5 (specify metric or inch)
  • Wet Grinding attachment with water-proof device
  • Dust Collector (1/2hp)
  • Work Lamp
  • Hydraulic Device (X Axis)
  • X & Y axis equipped with Linear Scale with Digital Read Out (X: 400 , Y: 250 mm)
  • X Axis upgraded to Linear Guideway
  • 5C Chuck for Work Head
  • Upgrade Grinding Wheel Spindle motor to 2hp
  • Frequency converter for grinding wheel spindle motor 1.5HP to 2HP
  • Left-hand Tailstock
  • Tool holder
  • MT5 to MT2, or MT3 or MT4, Morse Taper sleeve
  • 4″ Grinding Wheel Flange extension (dia 12.7mm)
  • Universal Tooth Rest plate and blade holder extension
  • Plain tooth rest holdseat
  • Plain tooth rest holder
  • Fine adjustment guide rod
  • Grinding Wheel WA 76Dx12.7Tx12.7H
  • Grinding Wheel A 100Dx1.5Tx12.7H
  • T-wrench
  • Belt for Spindle Drive 5M530
  • Belt for Spindle Drive 7M530
  • Transformer 3KVA for other than 240V. 400V
