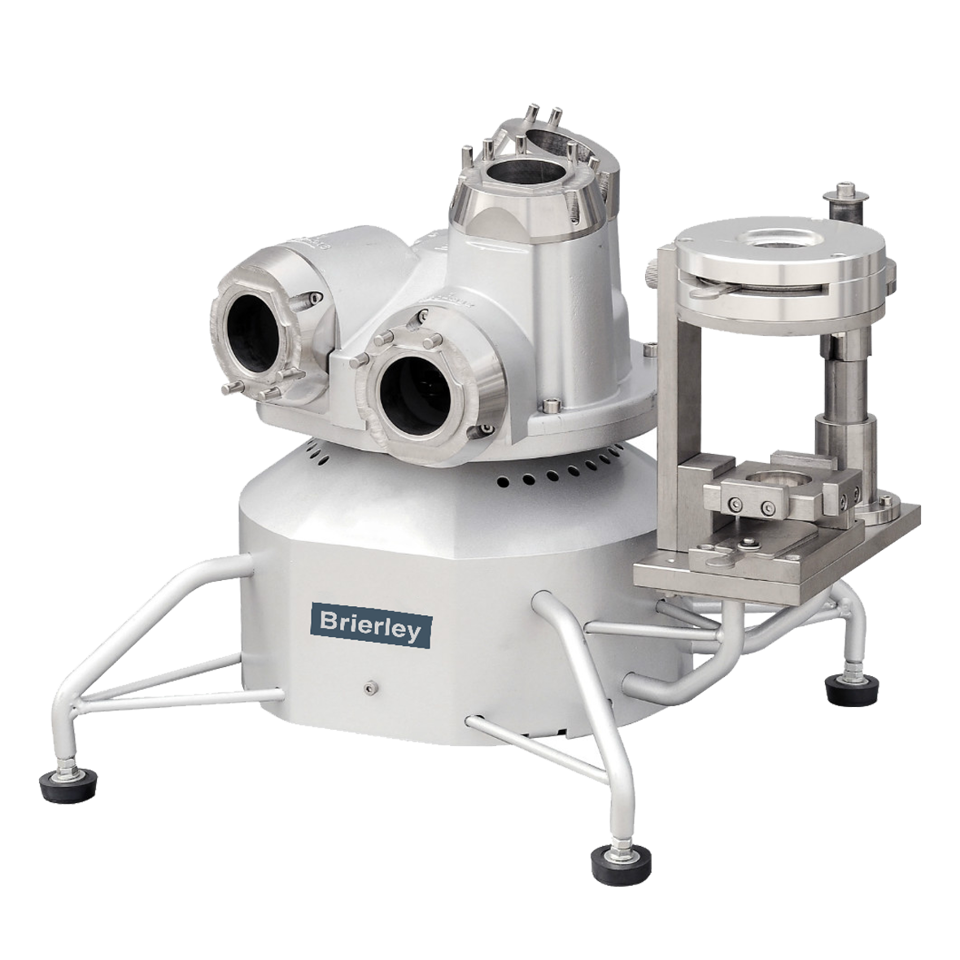

Our End mill grinder is ideal for sharpening and grinding.
Model | 20HP |
Applicable Diameter | 4-20mm |
Applicable Flutes | 2, 3, 4 Flutes |
Axial Angles |
|
Secondary Clearance Angle | 6° |
Primary Relief Angle | 20° |
End Gash Angle | 30° |
Grinding Wheel | SDC#220 |
Power supply | 220V ±10AC |
Motor output | 600w |
Rated speed | 6000rpm |
Outer Dimensions | 350 x 300 x 280mm |
Weight | 23kg |
Standard Accessories
• Collet
• 2 flutes holder
• 3 flutes holder
• 4 flutes holder
• Hexagon wrench
• Case
• Brush
