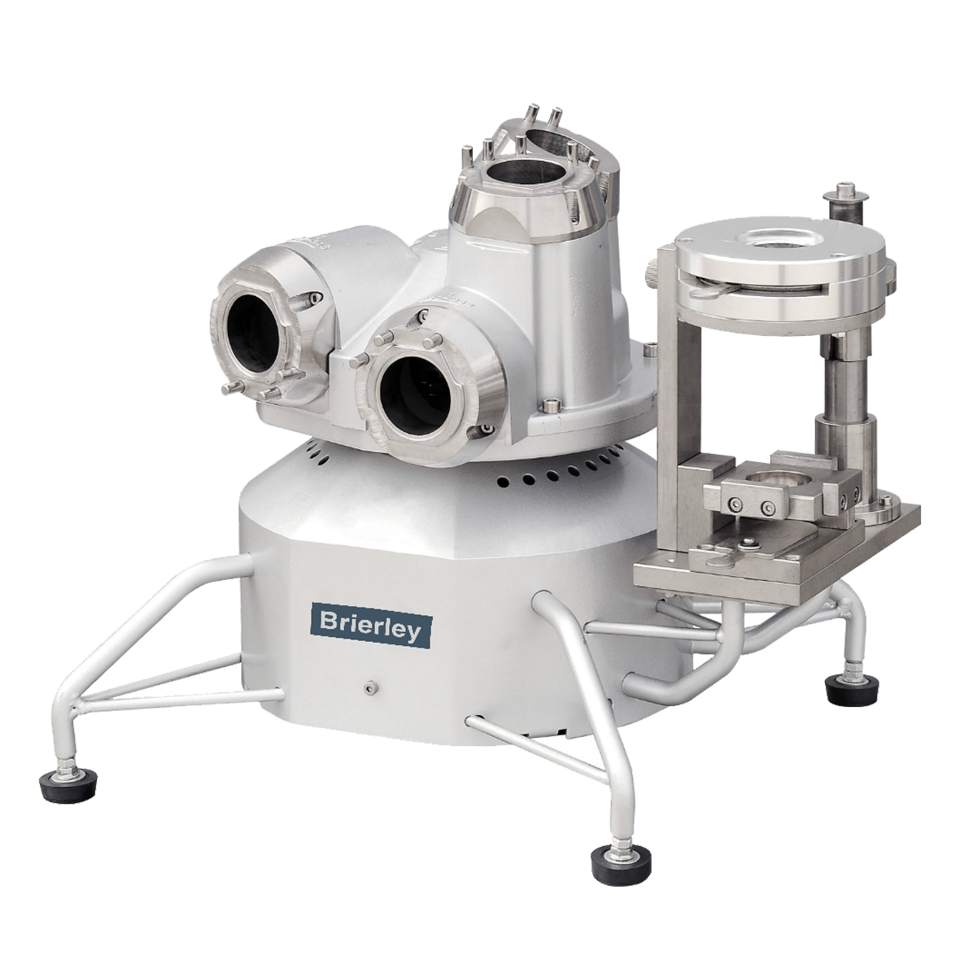

Portable end mill grinder, adjustable according to the end mill’s diameter.
With 20° primary relief angle and 2,3,4 applicable flutes.
Model | 12HP |
Applicable Diameter | 2-12mm |
Applicable Flutes | 2, 3, 4 Flutes |
Axial Angles |
|
Secondary Clearance Angle | 6° |
Primary Relief Angle | 20° |
End Gash Angle | 30° |
Grinding Wheel | SDC#220 |
Power supply | 220V ±10AC |
Motor output | 330w |
Rated speed | 7000rpm |
Outer Dimensions | 290 x 260 x 230mm |
Weight | 15kg |
Standard Accessories
• Collet
• 2 flutes holder
• 3 flutes holder
• 4 flutes holder
• Hexagon wrench
• Case
• Brush
