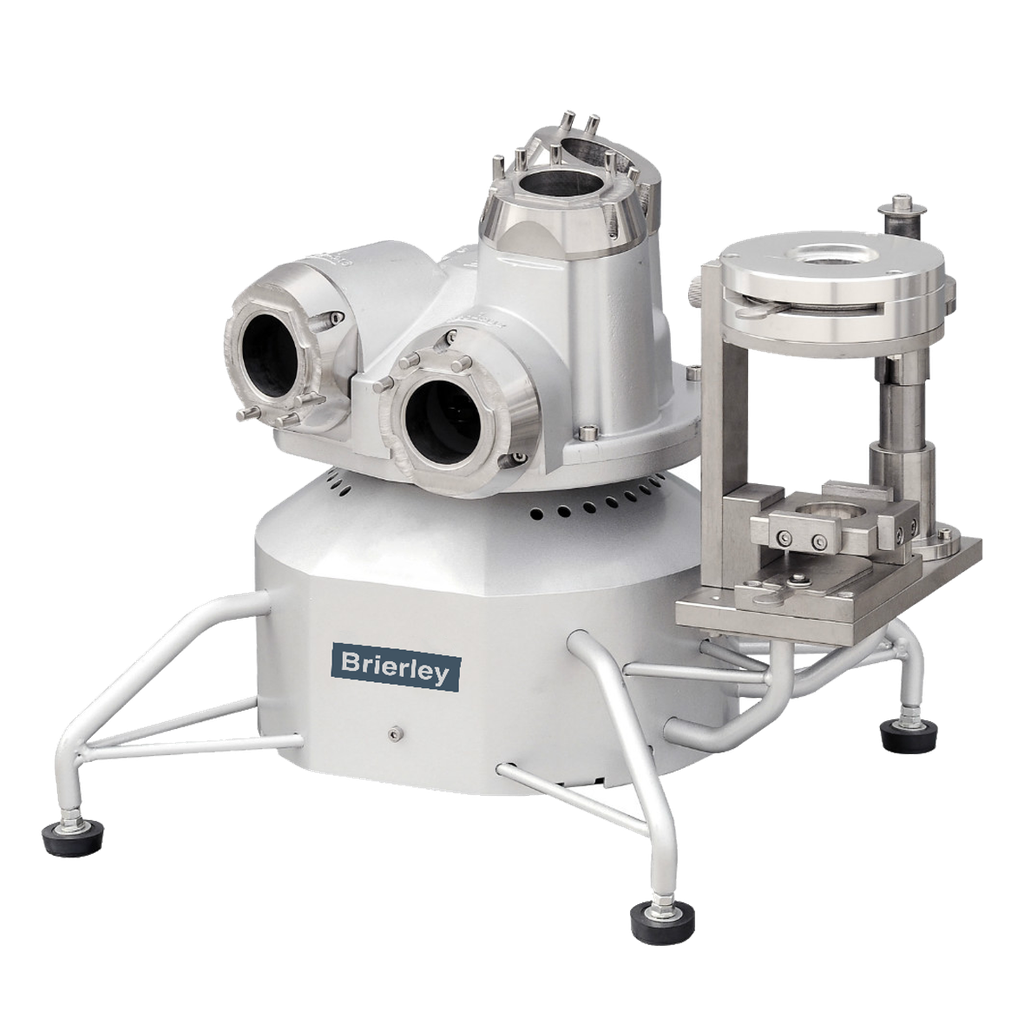

Our End mill grinder is ideal for sharpening and grinding.
| Model | 12 |
| Applicable diameter | 2 – 12mm |
| Applicable flutes | 2,3,4flutes |
| Axial angles |
|
| Secondary clearance angle: | 6° |
| Primary relief angle: | 20° |
| End gash angle: | 30° |
| Grinding wheel | SDC#220 |
| Power supply | 220V±10AC |
| Motor output | 300W |
| Rated speed | 7000 rpm |
| Outer dimensions | 290x260x230mm |
| Weight | 15kg |
Standard Accessories
• Collet
• 2 flutes holder
• 3 flutes holder
• 4 flutes holder
• Hexagon wrench
• Case
• Brush
