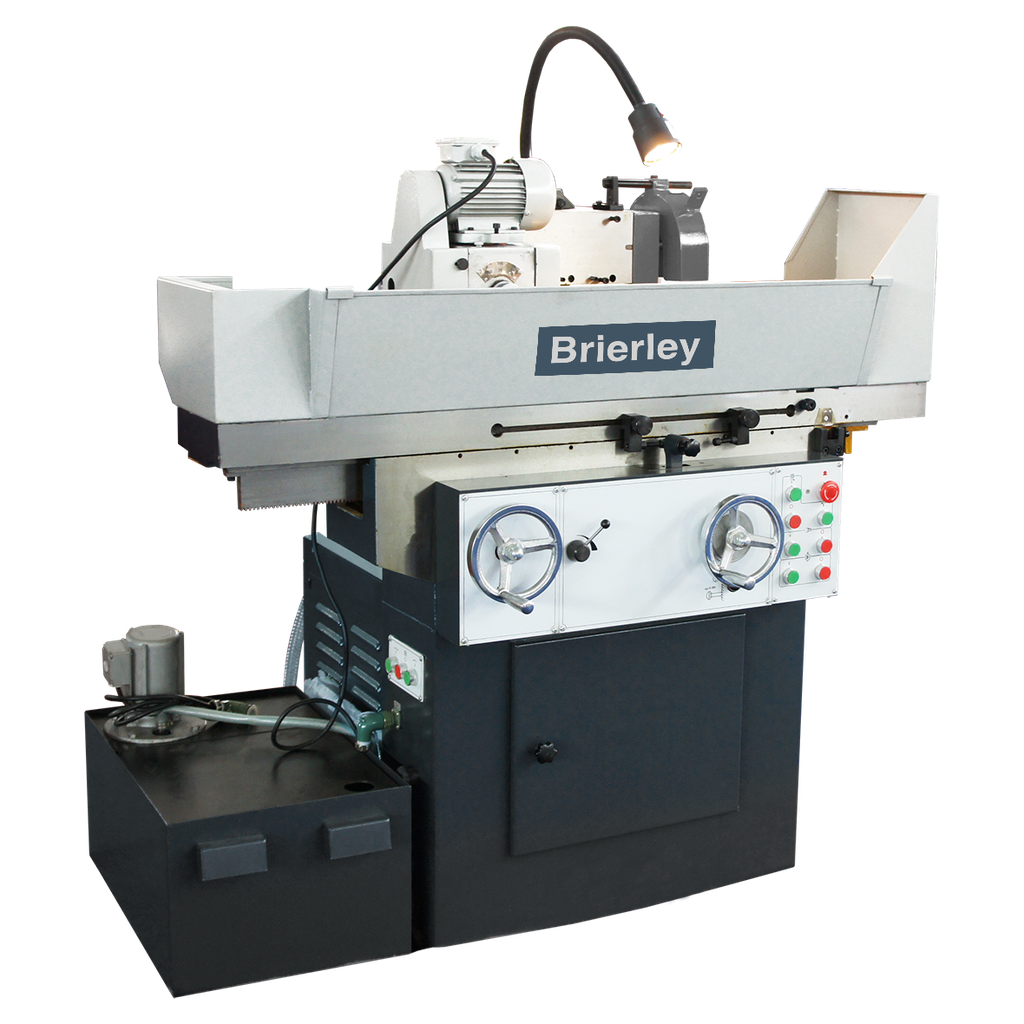

Heavy duty precision grinding machine. Ideal for internal, external, and surface grinding.
Features:
- Hydraulic Feed
- Heavy Duty Construction
- Tool Sharpening
- Internal Grinding
- External Grinding
- Surface Grinding
| Max. Swing Diameter of Work Table | 250mm |
| Distance Between Front and Rear Tail stocks | 630mm |
| Distance Between Rear Tail stocks and Universal Clamping Head Tail stock | 480mm |
| Distance Between Rear Tail stocks and Head Tail stock | 480mm |
| Wheel Head Spindle Speed | 3000, 5600rpm |
| Rotation Speed of Internal Cylinder Wheel Head | 12000rpm |
| Work Table Overall Dimensions | 900x135mm |
| Work Table Max. Swing Angle | 30o |
| Work Table Longitudinal Travel | 400mm |
| Work Table Hydraulic Travel Speed | 0.1-6m/min |
| Wheel Head Horizontal Swing Angle | 360o |
| Wheel Head Vertical Swing Angle | ±15º |
| Wheel Head Max. Vertical Travel | 210mm |
| Wheel Head Max. Transverse Travel Per Rotation (Roughness/Finishing) | 0.02mm/0.005mm |
| Wheel Head Hand Wheel Vertical Feed per Rotation | 2mm |
| Wheel Head Hand Wheel Vertical Feed per Graduate | 0.01mm |
| Wheel Head Spindle End Taper | 01:05 |
| Wheel Head Spindle Motor Rotation | 2800rpm |
| Grinding Ranges Piece Diameter (External Cylinder Piece) | 5-50mm |
| Grinding Ranges Piece Diameter (Internal Cylinder Piece) | 10-50mm |
| Grinding Ranges Piece Diameter (Tool Cutter) | 250mm |
| Grinding Ranges Max. Piece Length (External Cylinder Piece) | 300mm |
| Grinding Ranges Max. Piece Length (Internal Cylinder Piece) | 80mm |
| Grinding Ranges Max. Piece Length (Tool Cutter) | 400mm |
| Headstock Taper Hole of Spindle | MT3 |
| Working Table Size | 135x90mm |
| Overall Dimensions | 1350x1340x1300mm |
| Net Weight | 1150kg |
Standard Accessories
• Universal Chuck
• Former Top
• Back Centre
• Universal Rest
• Universal Vice
• Head Stock
• Internal Grinding
• Gear Shaper Cutter Grinding Spindle
• Centering Device
• Wheel Dressers
• Balancer
• Head Carrier
• Small Wheel Chuck
• Big Wheel Chuck
• Small and Large Socket Wrench
• Unloading Chuck Wrench
• Small Grinding Wheel Cover
• Big Grinding Wheel Cover
• Machine Installation with Chassis Screw
• MT2 Sleeve
• 3 Jaw Chuck
• Chuck Connector
• Inner Hexagon Screw
• Chuck Wrench
• MT3 Sleeve
Optional Accessories
• Arc Tool
• Collet Chuck
• Bulb Tool
• Arc Grinding Tool
• Drill Tool
• Permanent Magnetic Chuck
• Electric Vacuum Cleaner
