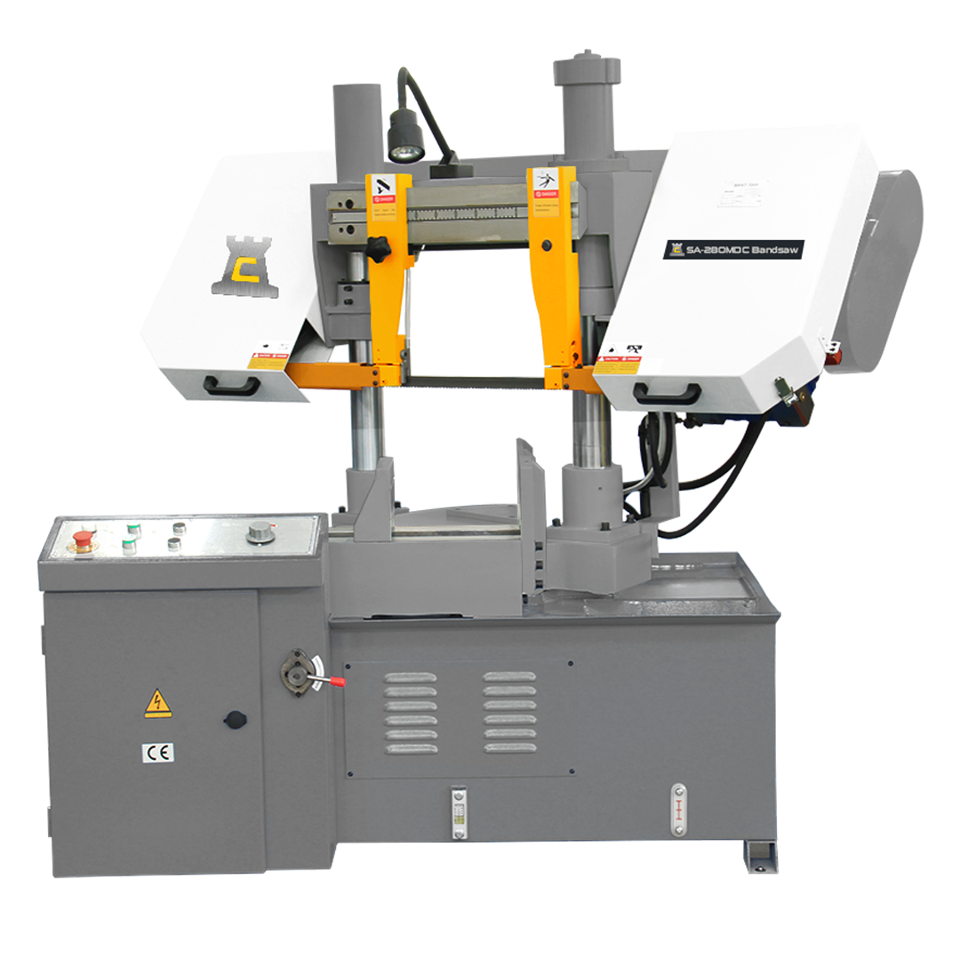

Chester SA-280MDC Bandsaw
Please contact our Sales Team for pricing: [email protected]. Or Call us Today: 01543 448940
Cutting Capacity Round: 280mm
Sawing Machines
A precision band saw, the SA-280MDC is ideal for workshops.
• Work Lamp
• Hydraulic Vice
• Adjustable Hydraulic Down Feed of Bow
• Hydraulic Raising of Bow
• Coolant System
• Semi-Automatic Function
• Bow Swivels Left 45° for Mitre Cutting
• EVS – Electronic Variable Speed for Blade
• Double Columns for High Rigidity
• Material Length Stop
| Cutting Capacities |
|
| Capacity @ 0° |
|
| Round | 280mm |
| Square | 280x280mm |
| Rectangular | 280x320mm |
| Capacity @ 45° |
|
| Round | 170mm |
| Square | 170x170mm |
| Rectangular | 280x170mm |
| Technical Specifications |
|
| Blade Dimensions | 27×0.9x3625mm |
| Motor Power | 3kw (4hp) |
| Table Height | 685mm |
| Machine Dimensions | 1890x780x1430mm |
| Net Weight | 820kg |
| Gross Weight | 965kg |
Features
- Work lamp
- Hydraulic vice
- Adjustable hydraulic down feed of bow
- Hydraulic raising of bow
- Coolant system
- Semi-Automatic function
- Bow swivels left 45° for mitre cutting
- EVS – Electronic variable speed for blade
- Double columns for high rigidity
- Material length stop
