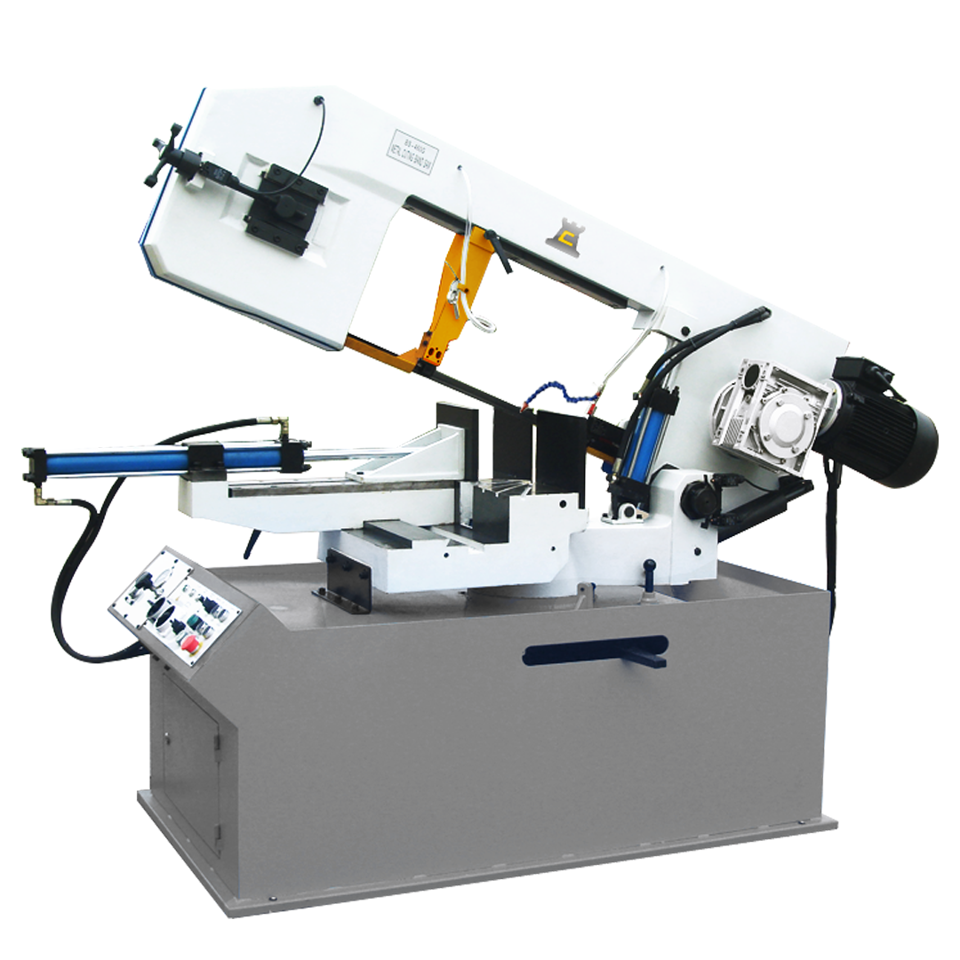

Chester SA-330DM Bandsaw
Cutting Capacity Round: 330mm
Sawing Machines
Semi-automatic bandsaw with adjustable hydraulic down feed of bow and material length stop.
• Semi-Automatic Function
• Hydraulic Vice
• Adjustable Hydraulic Down Feed of Bow
• Hydraulic Raising of Bow
• Coolant System
• EVS – Electronic Variable Speed for Blade
• Bow Swivels Left and Right 45° for Mitre
Cutting
• Material Length Stop
| Cutting Capacities |
|
| Capacity @ 0° |
|
| Round | 330mm |
| Square | 250x250mm |
| Rectangular | 460x250mm |
| Capacity @ 45° |
|
| Round | 305mm |
| Square | 250x250mm |
| Rectangular | 305x250mm |
| Capacity @ 60° |
|
| Round | 205mm |
| Square | 205x205mm |
| Rectangular | 205x250mm |
| Capacity @ -45° |
|
| Round | 305mm |
| Square | 250x250mm |
| Rectangular | 305x250mm |
| Technical Specifications |
|
| Blade Dimensions | 27×0.9x3960mm |
| Motor Power | 1.5kw(2hp)
2.2kw(3hp) |
| Table Height | 850mm |
| Machine Dimensions | 2300x1050x1630mm |
| Net Weight | 900kg |
| Gross Weight | 1060kg |
Features
- Semi-Automatic function
- Hydraulic vice
- Adjustable down feed of bow
- Hydraulic raising of bow
- Coolant system
- EVS – electronic variable speed for blade
- Bow swivels left and right 45° for mitre cutting
- Material length stop
