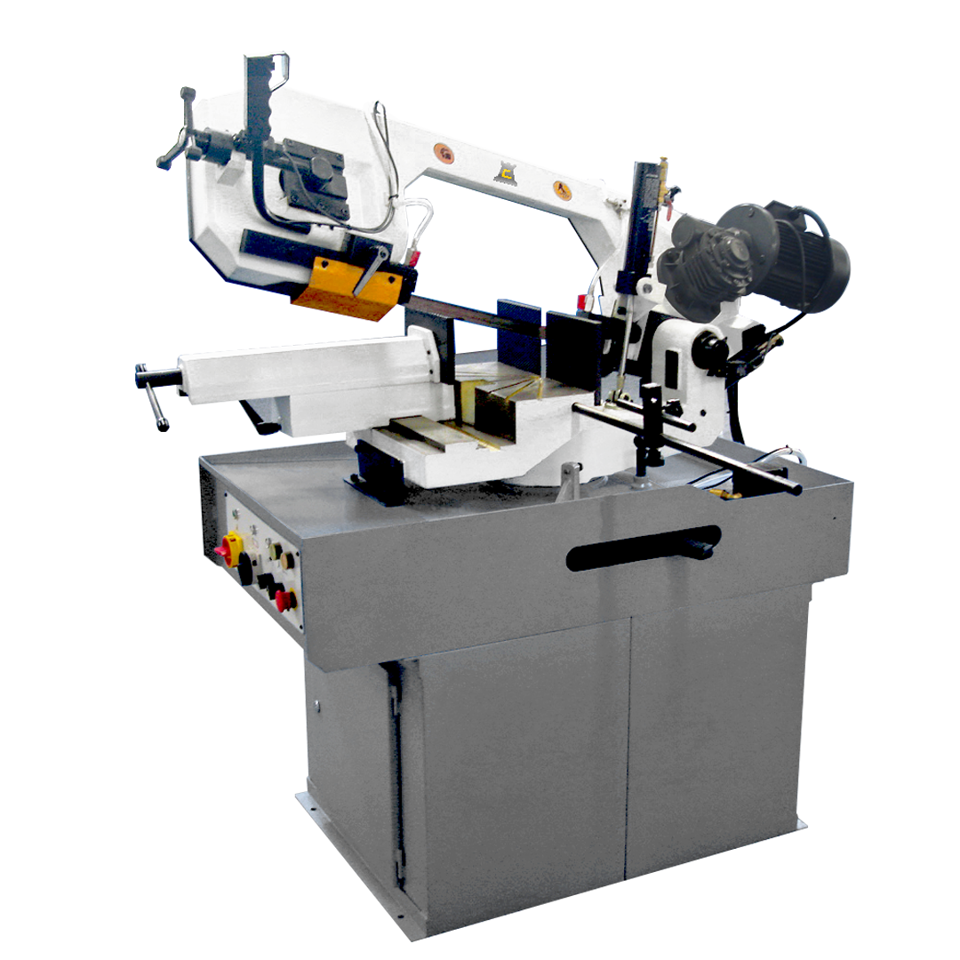

Chester 230DM Bandsaw
Cutting Capacity Round: 230mm
Sawing Machines
Quality bandsaw fitted with EVS allowing for the optimum blade speed whilst cutting.
| Cutting Capacities |
|
| Capacity @ 0° |
|
| Round | 230mm |
| Square | 180x180mm |
| Rectangular | 315x170mm |
| Capacity @ 45° |
|
| Round | 210mm |
| Square | 170x170mm |
| Rectangular | 210x170mm |
| Capacity @ 60° |
|
| Round | 130mm |
| Square | 130x130mm |
| Capacity @ -45° |
|
| Round | 210mm |
| Square | 170x170mm |
| Rectangular | 210x170mm |
| Technical Specifications |
|
| Bundle Cutting Capacity | 315x170mm |
| Blade Dimensions | 27×0.9x2825mm |
| Motor Power | 0.75/1.1kW(1hp) |
| Table Height | 960mm |
| Machine Dimensions | 1570x820x1340mm |
| Net Weight | 350kg |
| Gross Weight | 400kg |
| Voltage | 400V |
Features
- Adjustable hydraulic down feed of bow
- Coolant system
- Quick Action Vice
- Bow swivels left and right 45° for mitre cutting
- EVS – Electronic variable speed for blade
- Material length stop
- Cast iron bow and base
- Gear driven blade
- Quick action mitre bow
