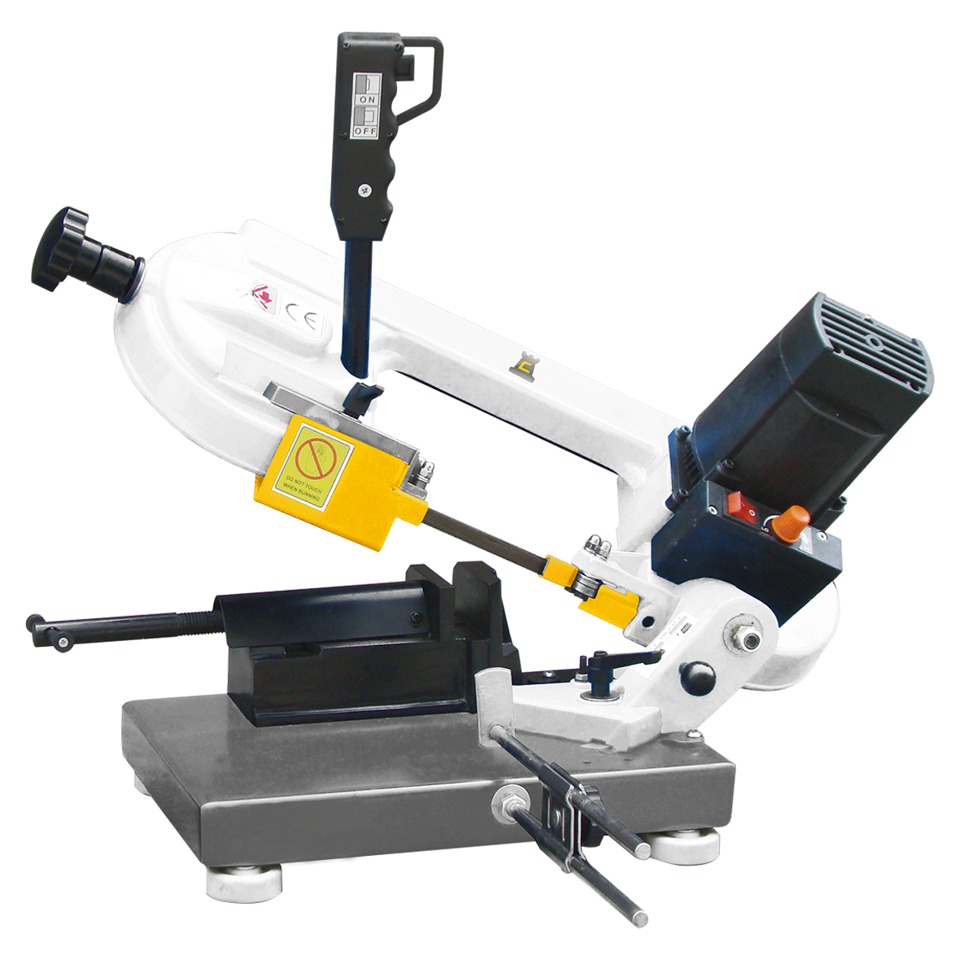

Chester 85M Mitre Bandsaw, 110V
Cutting Capacity Round: 85mm
Sawing Machines
The Chester 85M is a portable bandsaw which can be used for metal cutting. It uses a 240V electrical supply and can be used to cut metal at any angle between 45° and 90°.
The saw is built with a variable speed motor which enables the user to obtain the correct cutting speed.
• EVS – Electronic Variable Speed for Blade
• Bow Swivels Left and Right 45° for Mitre Cutting
• Material Length Stop
• Ball Bearing Blade Guides
| Cutting Capacities |
|
| Capacity @ 0° |
|
| Round | 85mm |
| Square | 85x85mm |
| Rectangular | 85x105mm |
| Capacity @ 45° |
|
| Round | 65mm |
| Square | 60x60mm |
| Rectangular | 60x60mm |
| Technical Specifications |
|
| Blade Dimensions | 13×0.65x1325mm |
| Motor Power | 1kw(1.4hp) |
| Machine Dimensions | 720x370x460mm |
| Net Weight | 19kg |
| Gross Weight | 21kg |
| Voltage | 110V
240V |
Features
- EVS – Electronic Variable Speed for Blade
- Bow Swivels Left and Right 45° for Mitre Cutting
- Material length stop
- Ball bearing blade guides
