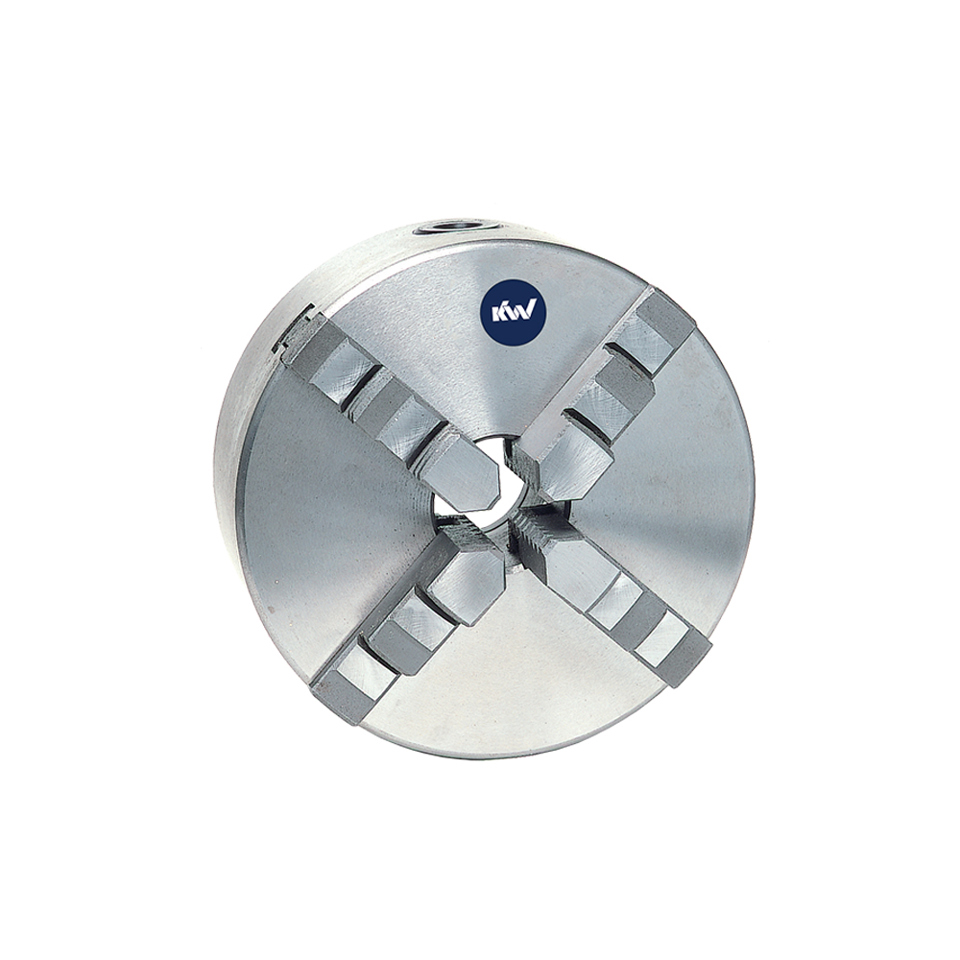

Quality lathe jaw chuck for metalwork.
Each chuck is supplied with 2 sets of jaws and chuck key.
These Chucks are suitable for use on universal lathes and internal and external grinding machines etc. for clamping workpieces to perform various cutting operations.
The jaws for clamping are constructed of quality steel and have been subjected to hardening treatment to ensure high wear and shock resistance. They are retentive of accuracy and durable in service.
Each chuck comes with a technical accuracy test certification and instructions for use.

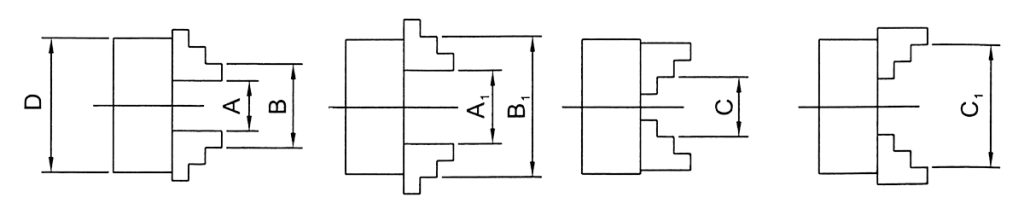

| Clamping Range | | | |
| Size | Internal Jaw (A-A1) | Internal Jaw (B-B1) | External Jaw (C-C1) |
| 250mm | 6-110mm | 80-250mm | 90-250mm |
| Installation Dimensions | | | | | | | |
| Size | D1 | D2 | D3 | H1 | h | Z-d | H |
| 250mm | 206mm | 226mm | 80mm | 80mm | 6mm | 3mm M12 | 120mm |
