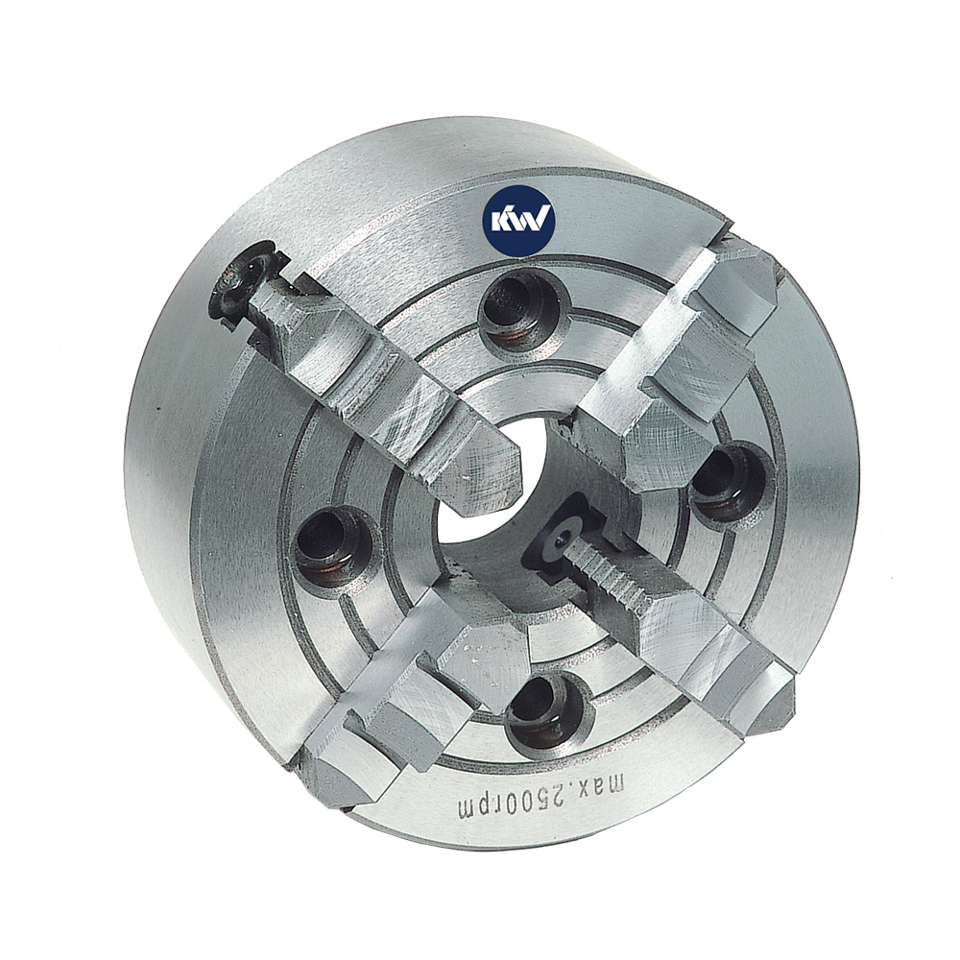

4 Jaw Independent Chucks, 500mm, D1-8, Camlock

Work Holding

Please contact our team for a custom quote and competitive pricing

4 Jaw Chucks for metal lathes.

Size
500mm
Camlock
D1-8
Weight
120kg

All 4 Jaw Chucks are made from cast iron with a fully ground finish. Each chuck is supplied with one set reversible jaws and chuck key.

These Chucks are suitable for use on universal lathes and internal and external grinding machines etc. for clamping workpieces to perform various cutting operations.

The jaws for clamping are constructed from cast iron and have been subjected to hardening treatment to ensure high wear and shock resistance. They are retentive of accuracy and durable in service.

Each chuck comes with a technical accuracy test certification and instructions for use.

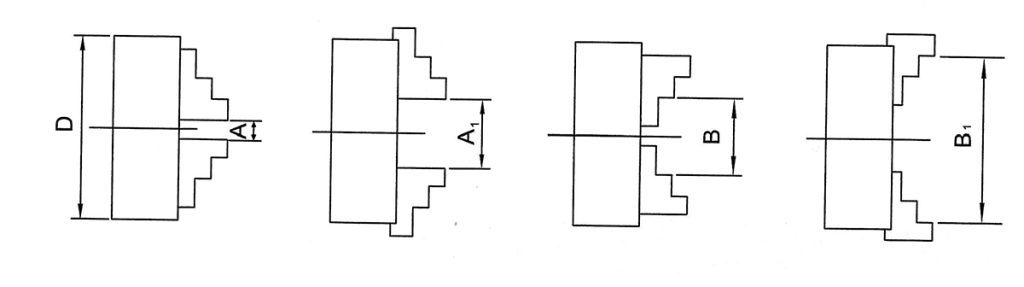

Clamping Range
SizeInternal Jaw (A-A1)External Jaw (B-B1)
500mm35-300mm125-500mm

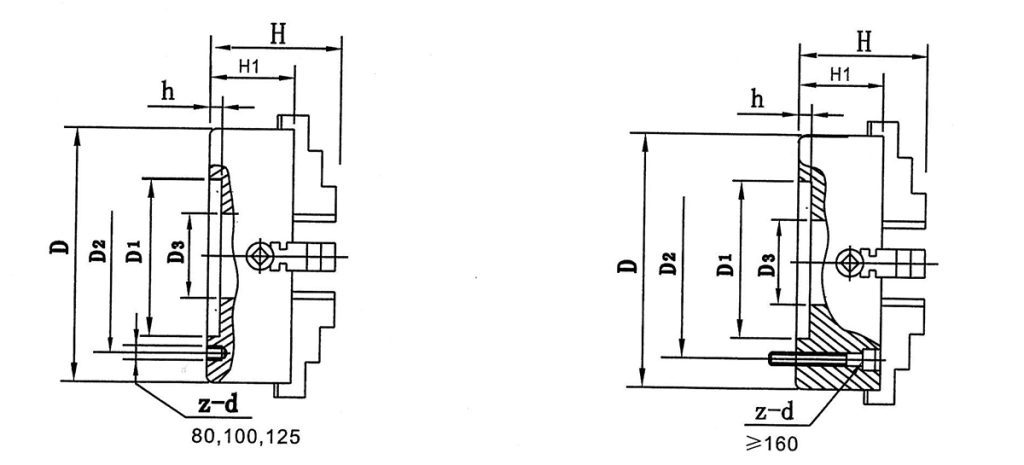

Installation Dimensions
SizeD1D2D3H1hz-dH
500mm200mm236mm160mm106mm8mm4mm M20161mm
