Quality Mono Block Jaw Chucks.
All chucks are fully ground and work to a permissible error of 0.064mm at 50mm from chuck jaws.
Each chuck comes with 1 set internal and 1 set external jaws and chuck key.

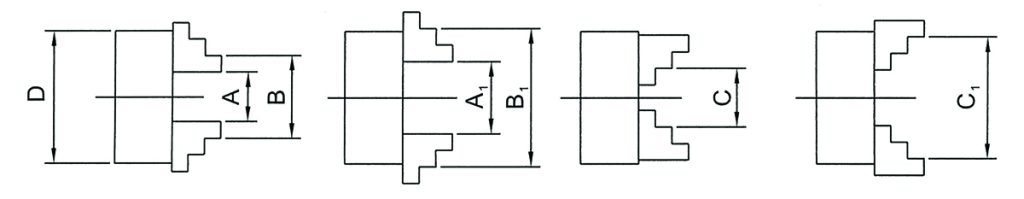

| Clamping Range |
|
|
|
| Size | Internal Jaw (A-A1) | Internal Jaw (B-B1) | External Jaw (C-C1) |
| 125mm | 2.5-40mm | 40-125mm | 40-110mm |

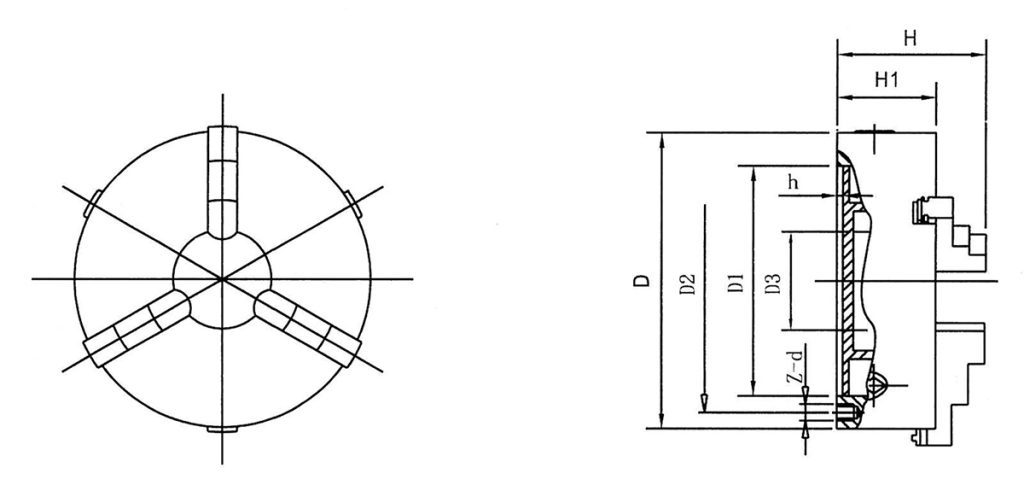

| Installation Dimensions |
|
|
|
|
|
|
|
| Size | D1 | D2 | D3 | H1 | h | Z-d | H |
| 125mm | 95mm | 108mm | 30mm | 58mm | 4mm | 3mm M8 | 84.5mm |
