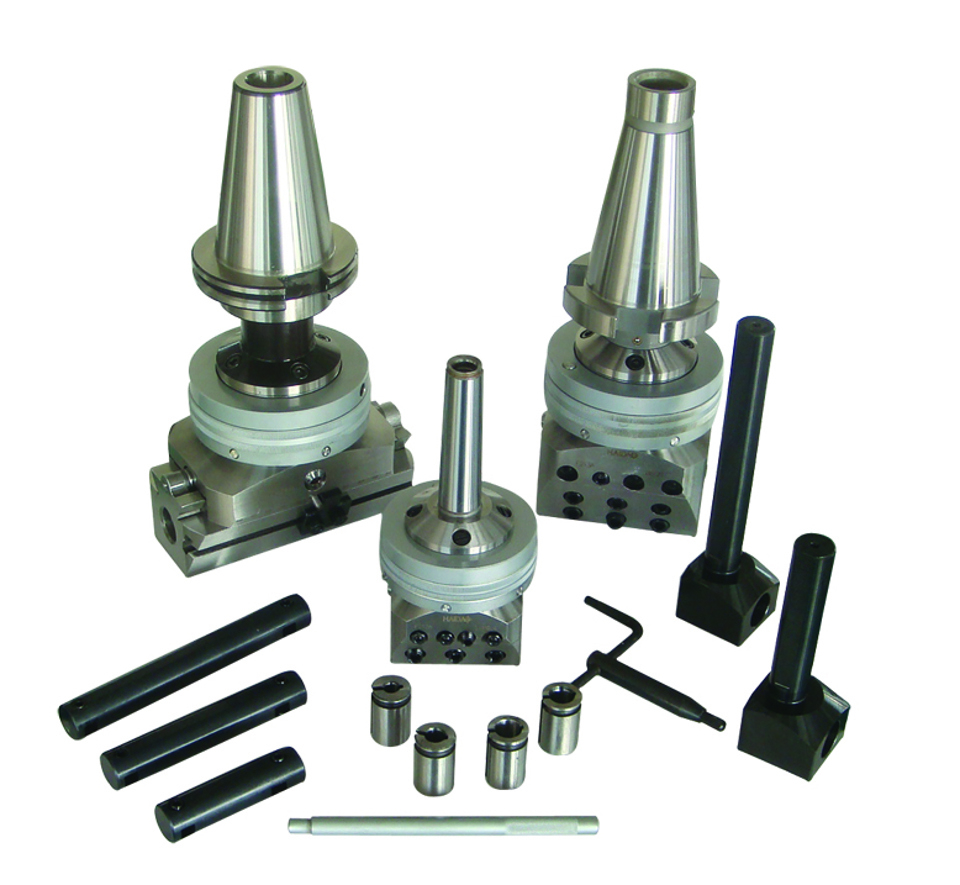

Precision boring and facing sets, ideal for performing boring operations with ease.
Max. Facing & Boring Diameter | 350mm |
Max. Stroke of Slide | +/- 25mm |
Fine Feed per Graduation | 0.005mm |
Manual Feed per Revolution | 3mm |
Self-acting Feed per Revolution | 0.03, 0.06, 0.09, 0.12,0.15, 0.18 mm |
Diameter of Tool Post Holes in Slide | 22mm |
Maximum Diameter of Slide | 120mm |
Height of Head Without Shank | 118mm |
Weight of Head Without Shank | 6.1kg |
Length of Sliding Block (L) | 105mm |
Width of Sliding Block (B) | 90mm |
ID of Bushing | 8, 10, 12, 14mm |
